Heavy Duty Snap Connectors
SERIES
C-AML-HDCON
HD Connectors for Trulux tape light make splicing, jumping or connecting power easy and quick. In just a few simple steps, connect tape light without the need of stripping or soldering wire.
- IP20 rated connector compatible with IP20 and IP54 Trulux tape
- HD snap connectors availabe in feeds, splices, and jumpers
- Compatible with a variety of Trulux tape light (sold separately)
- Works with 18 to 22 AWG wire (5 wire and 6 wire requires 22 AWG)
- Maximum 4A capacity (3.3A for 6 wire)
| Item Number | Length | Input Voltage | UOM |
|---|---|---|---|

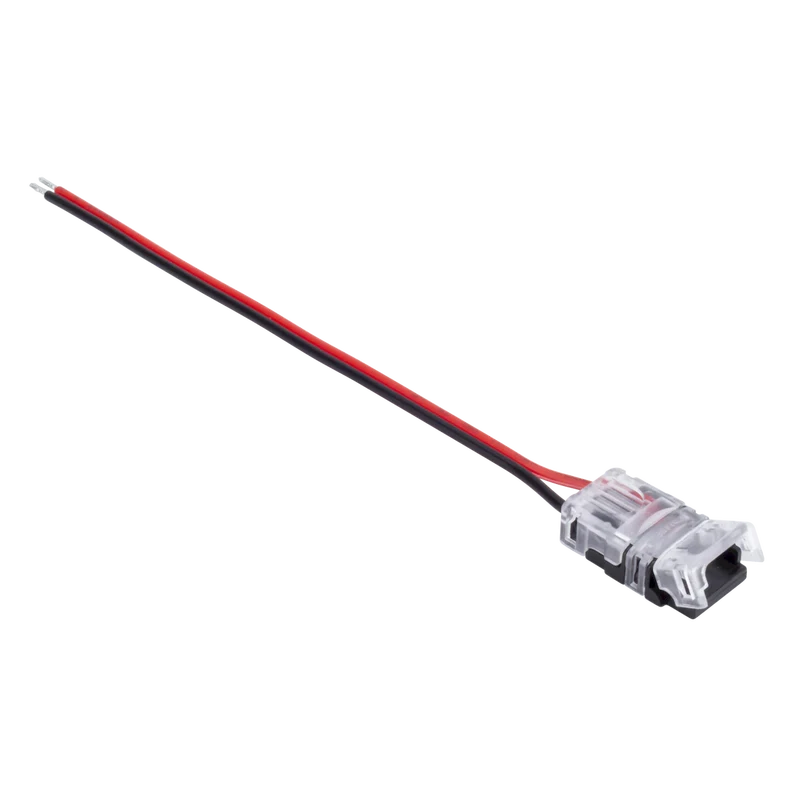

| TL-2PWR-HD | 6 Foot | Each | |
| TL-2PWR-HD-DC | 6 Foot | Each | |
| TL-2JUMP6-HD | 0.5 Foot | 120V AC | Each |
| TL-2JUMP24-HD | 2 Foot | Each | |
| TL-2SPL-HD | Each | ||
| TL-2SPL-L-HD | Each | ||
| TL-4PWR-HD | 6 Foot | Each | |
| TL-4JUMP6-HD | 0.5 Foot | Each | |
| TL-4JUMP24-HD | 2 Foot | Each | |
| TL-4SPL-HD | Each | ||
| TL-4SPL-L-HD | Each | ||
| TL-5PWR-HD | 6 Foot | Each | |
| TL-5JUMP6-HD | 0.5 Foot | Each | |
| TL-5JUMP24-HD | 2 Foot | Each | |
| TL-5SPL-HD | Each | ||
| TL-6PWR-HD | 6 Inch | Each | |
| TL-6JUMP6-HD | 6 Inch | Each | |
| TL-6JUMP24-HD | 2 Foot | Each | |
| TL-6SPL-HD | Each |
