LED Courant Undercabinet
SERIES
C-AML-UCR

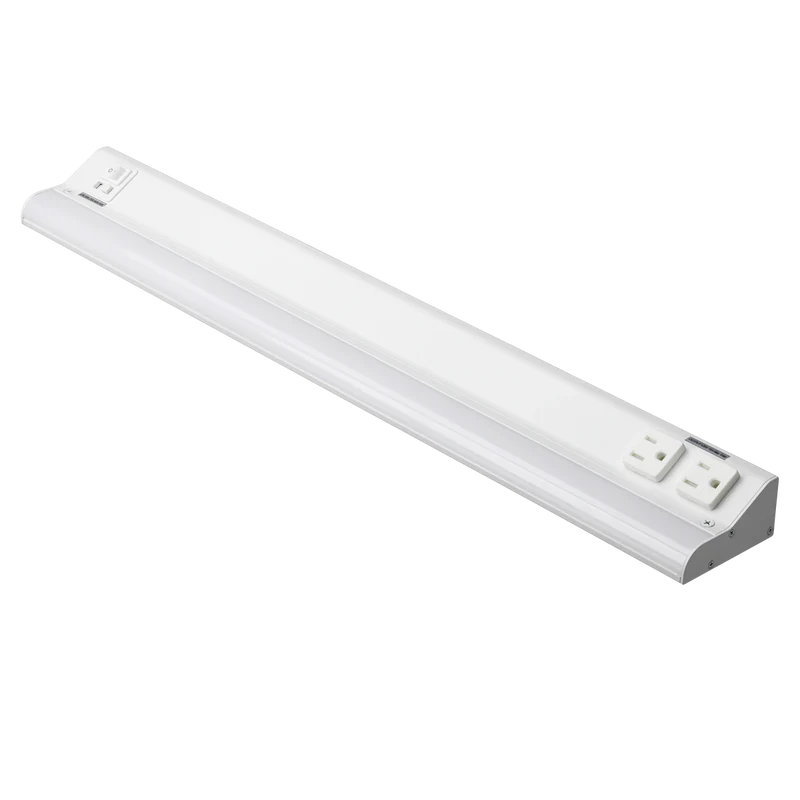

The LED Courant is an easy-to-install, under cabinet task light with built-in 15A tamper resistant power receptacles. With a quick access door to the wiring compartment and convenient push-in wire connectors, the LED Courant removes the visual clutter of in-wall receptacles while providing 90 CRI, 5CCT light selection.
- 5CCT selection (2700K, 3000K, 3500K, 4000K, 5000K)
- Diffused lens eliminates dotting
- 15A tamper resistant receptacles built in
- Multiple length options to fit any need
- Up to 2000 Lumens (40” model)
- Low profile design - less than 2” high
- Direct wire installation
- Dimmable with most Triac and ELV dimmers (when wired on two separate circuits)
- cETLus Listed for indoor dry locations
- 35,000 hours rated life
Performance
Input Voltage
120V AC
CCT
5CCT (2700K/3000K/3500K/4000K/5000K)
Finish
White / Black
Wattage
Up to 25W
Optics (Degree)
120 Degrees
CRI
90+
Max Run
Non-Linkable
Rated Life (Hr)
35,000 Hours
Dimming
Dimmable (5-100%) with most ELV, TRIAC dimmers (when wired on two separate circuits)
Lumens
Up to 2200Lm
Certification
Safety Rating
cETLus Listed
Location Rating
Dry
Indoor
Y
Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | UOM |
---|---|---|---|---|---|---|---|
UCR-5CCT-8-WH | 8 Inch | 120V AC | 5CCT | 90 | 5 W | 435 | Each |
UCR-5CCT-8-BK | 8 Inch | 120V AC | 5CCT | 90 | 5 W | 390 | Each |
UCR-5CCT-12-WH | 12 Inch | 120V AC | 5CCT | 90 | 7.5 W | 630 | Each |
UCR-5CCT-12-BK | 12 Inch | 120V AC | 5CCT | 90 | 7.5 W | 525 | Each |
UCR-5CCT-18-WH | 18 Inch | 120V AC | 5CCT | 90 | 12 W | 720 | Each |
UCR-5CCT-18-BK | 18 Inch | 120V AC | 5CCT | 90 | 12 W | 720 | Each |
UCR-5CCT-24-WH | 24 Inch | 120V AC | 5CCT | 90 | 15 W | 1180 | Each |
UCR-5CCT-24-BK | 24 Inch | 120V AC | 5CCT | 90 | 15 W | 1080 | Each |
UCR-5CCT-32-WH | 32 Inch | 120V AC | 5CCT | 90 | 20 W | 1625 | Each |
UCR-5CCT-32-BK | 32 Inch | 120V AC | 5CCT | 90 | 20 W | 1440 | Each |
UCR-5CCT-40-WH | 40 Inch | 120V AC | 5CCT | 90 | 25 W | 2000 | Each |
UCR-5CCT-40-BK | 40 Inch | 120V AC | 5CCT | 90 | 25 W | 1790 | Each |
