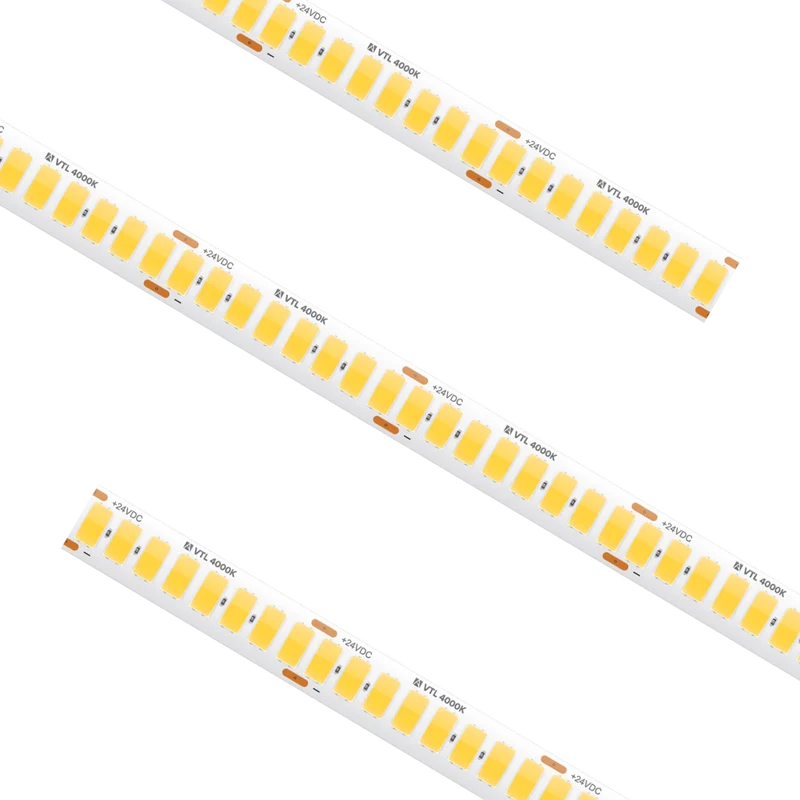

Trulux Vega Tape Light Static White

SERIES

C-AML-VTL

Big on brightness, small on form factor. With the Vega series you can achieve all the benefits of extreme light output from larger form factor fixtures in an ultra compact LED tape light strip. Extremely close diode spacing virtually eliminates any LED dotting or reflections providing a seamless line of light making for a perfect solution for general ambient lighting applications.

One of the brightest lumen output per foot tape light available
Lumen output up to 1163Lm per foot
Available in 2700K, 3000K, 3500K, and 4000K
80+ color rendering index
Cuttable every 1.4” with 13.1ft max run
Easy installation featuring 3M VHB adhesive backing
IP54 rating featuring nano-coating protective layer
Dimmable (5-100%) with most ELV, TRIAC dimmers
cULus Listed for indoor dry/damp locations
50,000 hours rated life / 5-year limited warranty

Specifications

Performance

Input Voltage

24V DC

CCT

2700K / 3000K / 3500K / 4000K

Wattage

7W/ft

Optics (Degree)

120 degrees

CRI

80+

Cut Increment

1.4 Inch

Max Run

13.1ft

Rated Life (Hr)

50,000 Hours

Temperature Range

5°C (41°F) to 70°C (158°F)

Dimming

Dimmable (5-100%) with most ELV, TRIAC dimmers

Lumens

Up to 1163Lm/ft

Certification

Safety Rating

cULus Listed

Ordering Information

Item Number	Length	Input Voltage	CCT	CRI	Wattage	Lumens	Max Run	IP Rating	UOM
VTL-UWW-13	13.1 Foot	24V DC	2700K	80+	7 W/ft	1030	13.1 ft	IP54	Each
VTL-WW-13	13.1 Foot	24V DC	3000K	80+	7 W/ft	1090	13.1 ft	IP54	Each
VTL-NW-13	13.1 Foot	24V DC	3500K	80+	7 W/ft	1140	13.1 ft	IP54	Each
VTL-WH-13	13.1 Foot	24V DC	4000K	80+	7 W/ft	1163	13.1 ft	IP54	Each
VTL-UWW-CC	Custom Cut	24V DC	2700K	80+	7 W/ft	1030	13.1 ft	IP54	Foot
VTL-WW-CC	Custom Cut	24V DC	3000K	80+	7 W/ft	1090	13.1 ft	IP54	Foot
VTL-NW-CC	Custom Cut	24V DC	3500K	80+	7 W/ft	1140	13.1 ft	IP54	Foot
VTL-WH-CC	Custom Cut	24V DC	4000K	80+	7 W/ft	1163	13.1 ft	IP54	Foot
