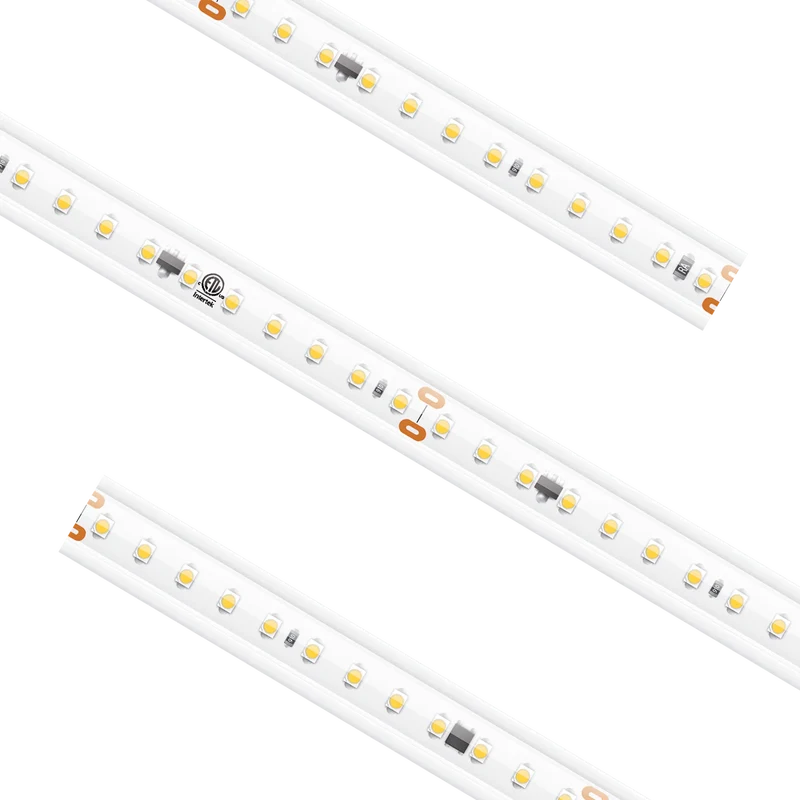

Hybrid 3 4000K Custom Cut

SERIES
120-H3-40-CC
HYBRID 3 - Custom Cut - 3056 LED 72/M,120VAC,4000K,4W/FT,4"CUT,cETLus
Hybrid 3 4000K Custom Cut
Hybrid 3 4000K Custom Cut Hybrid 3 4000K Custom Cut

Performance

Input Voltage
120V AC
UV Inhibitor
N
Wattage
4 W/ft
CCT
4000K
CRI
90+
Lumens
320
Cut Increment
4 in
Max Run
164 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
30,000 Hours
Temperature Range
-30C (-22F) to 45C (113F) degrees
Dimming
ELV / CL 10 - 100%
Finish
White
Quantity
72
Spacing
0.54 Inch

Physical

Weight
0.099 lbs
Length
Custom Cut

Certification

Safety Rating
ETL Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
120-H3-40-CC Custom Cut 120V AC 4000K 90+ 4 W/ft 320 164 ft IP65 Foot
