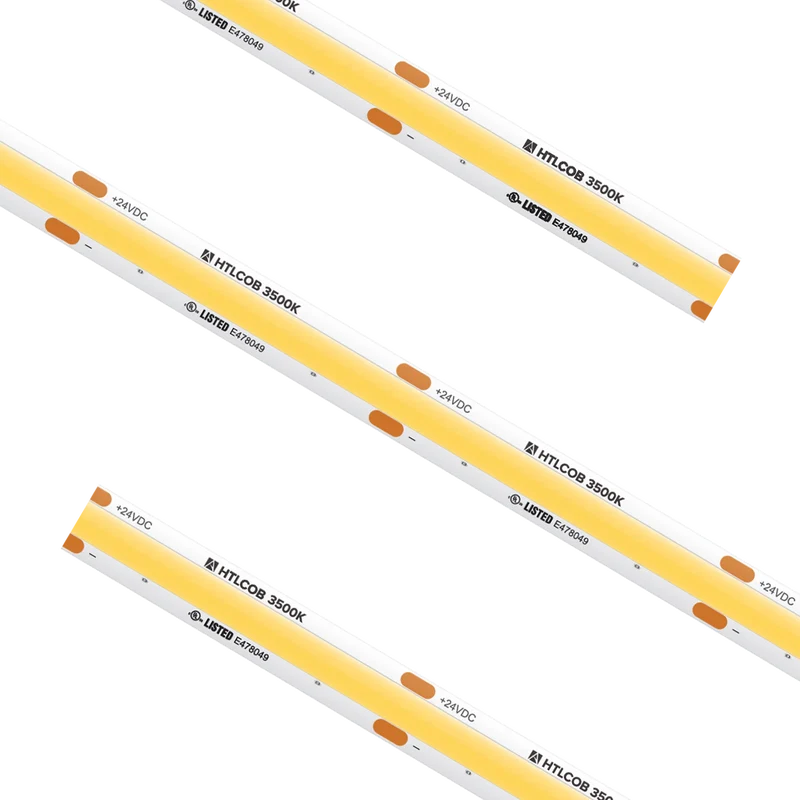

HIGH OUTPUT COB

COB Tape Light features uniform illumination without the need for additional diffused covers or accessories. Featuring a premium seamless line of light making it an ideal solution for areas with low clearance or reflective surfaces to eliminate virtually all dotting or spot-glare effects.

Seamless COB design that eliminates virtually all LED dotting
Available in 2700K, 3000K, 3500K, 4000K, and 5000K
90+ color rendering index
Lumen output ranging from 349Lm to 460Lm per foot
Cuttable every 1.97” with 16.4ft max run
Easy installation featuring 3M VHB adhesive backing
Available in IP20 uncoated, IP54 coated, and IP65 Jacketed ratings
Dimmable (5-100%) with most ELV, TRIAC dimmers
cULus Listed for indoor dry/damp and wet locations
JA8 Compliant
50,000 hours rated life
Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)

Go to ACE Product Configurator

Series

HTL-COB

Input Voltage

24V DC

CCT

2700K / 3000K / 3500K / 4000K / 5000K

CRI

90+

Lumens

Up to 460Lm per ft

Wattage

4.5W per ft

Cut Increments

Every 1.97"

Width

10mm

Max Run

16.4ft

IP Rating

IP20 - Dry Location / IP54 - Damp Location / IP65 - Wet Location

Ratings

cULus Listed

Rated Life

50,000 Hrs

HTL20-COB-UWW-16

2700K / 24V DC / 4.5W per ft / 369Lm per ft / 16.4 ft Reel (IP20)

HTL-COB-UWW-16

2700K / 24V DC / 4.5W per ft / 369Lm per ft / 16.4 ft Reel (IP54)

HTL65-COB-UWW-16

2700K / 24V DC / 4.5W per ft / 349Lm per ft / 16.4 ft Reel (IP65)

HTL-COB-UWW-100

2700K / 24V DC / 4.5W per ft / 369Lm per ft / 100 ft Reel (IP54)

HTL-COB-UWW-CC

2700K / 24V DC / 4.5W per ft / 369Lm per ft / Custom Cut (IP54)

HTL65-COB-UWW-CC

2700K / 24V DC / 4.5W per ft / 349Lm per ft / Custom Cut (IP65)

HTL20-COB-WW-16

3000K / 24V DC / 4.5W per ft / 409Lm per ft / 16.4 ft Reel (IP20)

HTL-COB-WW-16

3000K / 24V DC / 4.5W per ft / 409Lm per ft / 16.4 ft Reel (IP54)

HTL65-COB-WW-16

3000K / 24V DC / 4.5W per ft / 379Lm per ft / 16.4 ft Reel (IP65)

HTL-COB-WW-100

3000K / 24V DC / 4.5W per ft / 409Lm per ft / 100 ft Reel (IP54)

HTL-COB-WW-CC

3000K / 24V DC / 4.5W per ft / 409Lm per ft / Custom Cut (IP54)

HTL65-COB-WW-CC

3000K / 24V DC / 4.5W per ft / 379Lm per ft / Custom Cut (IP65)

HTL20-COB-NW-16

3500K / 24V DC / 4.5W per ft / 413Lm per ft / 16.4 ft Reel (IP20)

HTL-COB-NW-16

3500K / 24V DC / 4.5W per ft / 413Lm per ft / 16.4 ft Reel (IP54)

HTL65-COB-NW-16

3500K / 24V DC / 4.5W per ft / 387Lm per ft / 16.4 ft Reel (IP65)

HTL-COB-NW-100

3500K / 24V DC / 4.5W per ft / 413Lm per ft / 100 ft Reel (IP54)

HTL-COB-NW-CC

3500K / 24V DC / 4.5W per ft / 413Lm per ft / Custom Cut (IP54)

HTL65-COB-NW-CC

3500K / 24V DC / 4.5W per ft / 387Lm per ft / Custom Cut (IP65)

HTL20-COB-WH-16

4000K / 24V DC / 4.5W per ft / 460Lm per ft / 16.4 ft Reel (IP20)

HTL-COB-WH-16

4000K / 24V DC / 4.5W per ft / 460Lm per ft / 16.4 ft Reel (IP54)

HTL65-COB-WH-16

4000K / 24V DC / 4.5W per ft / 415Lm per ft / 16.4 ft Reel (IP65)

HTL-COB-WH-100

4000K / 24V DC / 4.5W per ft / 460Lm per ft / 100 ft Reel (IP54)

HTL-COB-WH-CC

4000K / 24V DC / 4.5W per ft / 460Lm per ft / Custom Cut (IP54)

HTL65-COB-WH-CC

4000K / 24V DC / 4.5W per ft / 415Lm per ft / Custom Cut (IP65)

HTL20-COB-CW-16

5000K / 24V DC / 4.5W per ft / 448Lm per ft / 16.4 ft Reel (IP20)

HTL-COB-CW-16

5000K / 24V DC / 4.5W per ft / 448Lm per ft / 16.4 ft Reel (IP54)

HTL65-COB-CW-16

5000K / 24V DC / 4.5W per ft / 434Lm per ft / 16.4 ft Reel (IP65)

HTL-COB-CW-100

5000K / 24V DC / 4.5W per ft / 448Lm per ft / 100 ft Reel (IP54)

HTL-COB-CW-CC

5000K / 24V DC / 4.5W per ft / 448Lm per ft / Custom Cut (IP54)

HTL65-COB-CW-CC

5000K / 24V DC / 4.5W per ft / 434Lm per ft / Custom Cut (IP65)

TL-CONKIT

Trulink 4-in-1 Connection Kit

TL-BLKS

Trulink 4-in-1 connector Block (qty 10)

TL-2PWR-HD

6" HD Power Feed

TL-2SPL-HD

HD Tape to Tape Splice Connector

TL-2JUMP6-HD

6" HD Linking Cable

TL-2JUMP24-HD

24" HD Linking Cable

WIRE-15-2PIN

15ft (20/2) Wire Spool

LVSB-2PIN

2pin In-line Terminal Block

RCWY-PVC-1M

1m Plastic Wire Cover Raceway

INLINE-SC-CTRL

Simple Select In-line Controller (Single Color)

CATALOG CUT SHEETS

Trulux HTL-COB Cut Sheet

Trulux Single Color Controls

SPECIFICATION SHEETS

Trulux HTL-COB Spec Sheet

Heavy Duty Snap Connectors Spec Sheet

Trulink Connector Spec Sheet

INSTRUCTION MANUALS

Trulux HTL20-COB Instructions

Trulux HTL-COB Instructions

Trulux HTL65-COB Instructions

Simple Inline Controller Instructions

IES FILES

Trulux HTL20-COB IES Files

Trulux HTL65-COB IES Files

BROCHURES

Trulux Custom Cut Brochure

ORDERING INFORMATION

ITEM NUMBER	LENGTH	VOLTAGE	CCT	CRI	WATTAGE	LUMENS	CUTTABLE	MAX RUN	IP RATING
HTL20-COB-UWW-16	16.4ft	24V	2700K	90+	4.5W/ft	369Lm/ft	1.97"	16.4ft	IP20
HTL20-COB-WW-16	16.4ft	24V	3000K	90+	4.5W/ft	409Lm/ft	1.97"	16.4ft	IP20
HTL20-COB-NW-16	16.4ft	24V	3500K	90+	4.5W/ft	413Lm/ft	1.97"	16.4ft	IP20
HTL20-COB-WH-16	16.4ft	24V	4000K	90+	4.5W/ft	460Lm/ft	1.97"	16.4ft	IP20
HTL20-COB-CW-16	16.4ft	24V	5000K	90+	4.5W/ft	448Lm/ft	1.97"	16.4ft	IP20
HTL-COB-UWW-16	16.4ft	24V	2700K	90+	4.5W/ft	369Lm/ft	1.97"	16.4ft	IP54
HTL-COB-WW-16	16.4ft	24V	3000K	90+	4.5W/ft	409Lm/ft	1.97"	16.4ft	IP54
HTL-COB-NW-16	16.4ft	24V	3500K	90+	4.5W/ft	413Lm/ft	1.97"	16.4ft	IP54
HTL-COB-WH-16	16.4ft	24V	4000K	90+	4.5W/ft	460Lm/ft	1.97"	16.4ft	IP54
HTL-COB-CW-16	16.4ft	24V	5000K	90+	4.5W/ft	448Lm/ft	1.97"	16.4ft	IP54
HTL65-COB-UWW-16	16.4ft	24V	2700K	90+	4.5W/ft	349Lm/ft	1.97"	16.4ft	IP65
HTL65-COB-WW-16	16.4ft	24V	3000K	90+	4.5W/ft	379Lm/ft	1.97"	16.4ft	IP65
HTL65-COB-NW-16	16.4ft	24V	3500K	90+	4.5W/ft	387Lm/ft	1.97"	16.4ft	IP65
HTL65-COB-WH-16	16.4ft	24V	4000K	90+	4.5W/ft	415Lm/ft	1.97"	16.4ft	IP65
HTL65-COB-CW-16	16.4ft	24V	5000K	90+	4.5W/ft	434Lm/ft	1.97"	16.4ft	IP65
HTL-COB-UWW-100	100ft	24V	2700K	90+	4.5W/ft	369Lm/ft	1.97"	16.4ft	IP54
HTL-COB-WW-100	100ft	24V	3000K	90+	4.5W/ft	409Lm/ft	1.97"	16.4ft	IP54
HTL-COB-NW-100	100ft	24V	3500K	90+	4.5W/ft	413Lm/ft	1.97"	16.4ft	IP54
HTL-COB-WH-100	100ft	24V	4000K	90+	4.5W/ft	460Lm/ft	1.97"	16.4ft	IP54
HTL-COB-CW-100	100ft	24V	5000K	90+	4.5W/ft	448Lm/ft	1.97"	16.4ft	IP54
HTL-COB-UWW-CC	Custom Cut	24V	2700K	90+	4.5W/ft	369Lm/ft	1.97"	16.4ft	IP54
HTL-COB-WW-CC	Custom Cut	24V	3000K	90+	4.5W/ft	409Lm/ft	1.97"	16.4ft	IP54
HTL-COB-NW-CC	Custom Cut	24V	3500K	90+	4.5W/ft	413Lm/ft	1.97"	16.4ft	IP54
HTL-COB-WH-CC	Custom Cut	24V	4000K	90+	4.5W/ft	460Lm/ft	1.97"	16.4ft	IP54
HTL-COB-CW-CC	Custom Cut	24V	5000K	90+	4.5W/ft	448Lm/ft	1.97"	16.4ft	IP54
HTL65-COB-UWW-CC	Custom Cut	24V	2700K	90+	4.5W/ft	349Lm/ft	1.97"	16.4ft	IP65
HTL65-COB-WW-CC	Custom Cut	24V	3000K	90+	4.5W/ft	379Lm/ft	1.97"	16.4ft	IP65
HTL65-COB-NW-CC	Custom Cut	24V	3500K	90+	4.5W/ft	387Lm/ft	1.97"	16.4ft	IP65
HTL65-COB-WH-CC	Custom Cut	24V	4000K	90+	4.5W/ft	415Lm/ft	1.97"	16.4ft	IP65
HTL65-COB-CW-CC	Custom Cut	24V	5000K	90+	4.5W/ft	434Lm/ft	1.97"	16.4ft	IP65
