Advantage Direct Select 8

SERIES

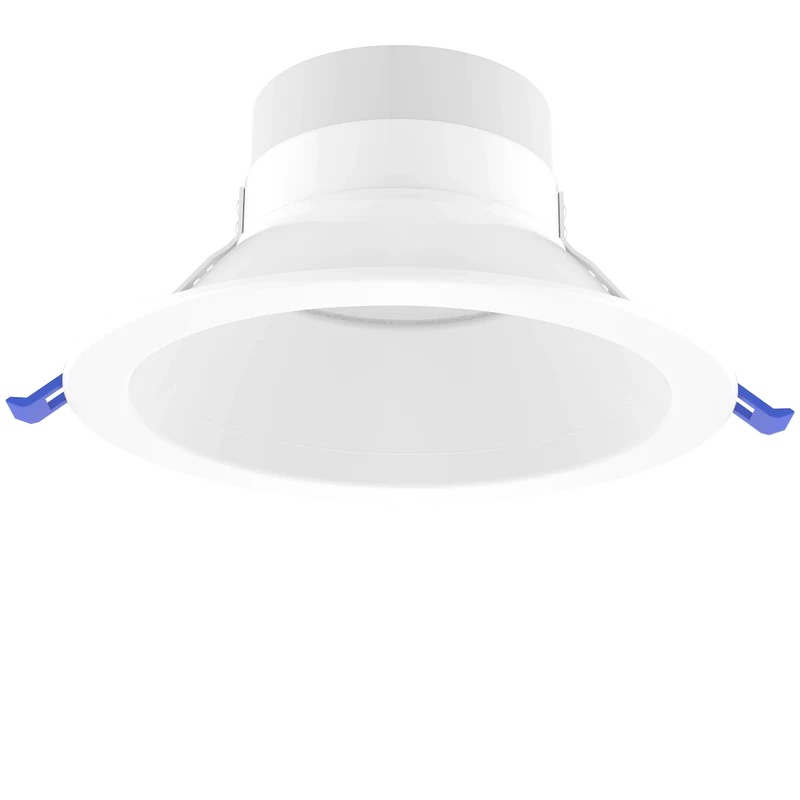

AD8RE-5CCT-WH

The Advantage Select 5CCT downlight offers 5 selectable color temperatures in one compact package. The selectable CCT switch is located on the back of the downlight housing and can be adjusted on the fly. This feature is also beneficial when it comes time to remodels providing a simple way to update lighting to match a new color scheme or design.

  • Excellent color rendering (90+ CRI)
  • Five Selectable color temperatures:
    2700K / 3000K / 3500K / 4000K / 5000K
  • Up to 2000 lumen output performance
  • Dimmable with most TRIAC dimmers
  • Remote driver with hardwire junction box
  • Spring loaded mounting clips
  • Type IC and cETLus Listed for wet locations
  • 50,000 hours rated life
  • ENERGY STAR certified
  • JA8 Compliant
Advantage Direct Select 8
Advantage Direct Select 8

Performance

Input Voltage
120V AC
Wattage
25 W
CCT
5CCT
CRI
90+
Lumens
1600
Optics (Degree)
95 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 40C (104F) degrees
Dimming
TRIAC / ELV / CL 10 - 100%
Finish
White
Style
Smooth

Physical

Weight
1.9 lbs
Length
8 Inch

Certification

Safety Rating
cETLus Listed
Energy Star
Y
Title 24
Y
Type IC
Y
Location Rating
Wet
Indoor
Y
FCC
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens UOM
AD8RE-5CCT-WH 8 Inch 120V AC 5CCT 90+ 25 W 1600 Each
