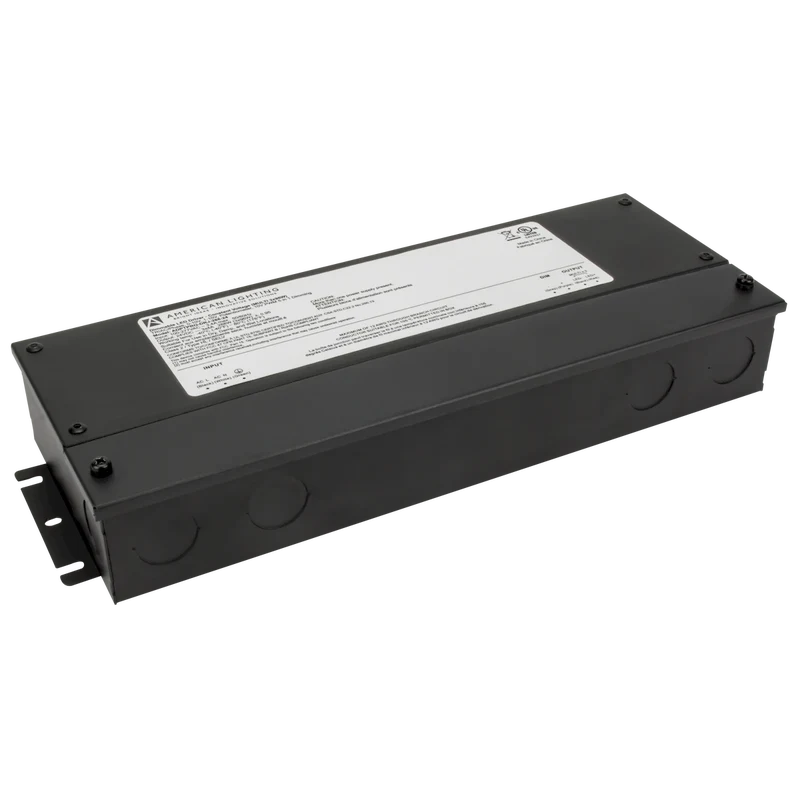

Adaptive Driver with Enclosed Leads and Knockouts 288 Watts 24V DC

SERIES
ADPT-DRJ-288-24

The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.

  • 24V DC Constant voltage 288W (3 X 96W) hardwire LED driver
  • Dimmable with ELV, MLV, & Incandescent TRIAC dimmers
  • Features integrated wiring compartments for line and low voltage
  • Forward phase & reverse phase compatible
  • Short circuit, over-load, and over temperature protections
  • Slim compact housing design - Less than 1-5/8" in height
  • Class II / cULus Listed - Wet location rated
Adaptive Driver with Enclosed Leads and Knockouts 288 Watts 24V DC
Adaptive Driver with Enclosed Leads and Knockouts 288 Watts 24V DC Adaptive Driver with Enclosed Leads and Knockouts 288 Watts 24V DC

Performance

Input Voltage
100-277V AC
Output Voltage
24V DC
Output Frequency
3 * 4A
Wattage
288 W
Power Factor
0.99@120V 0.94@277V
Minimum Load
28.8 W
Temperature Range
-40C (-40F) to 60C (140F) degrees
Dimming
Phase Dimming / MLV / ELV / TRIAC 0-10V
Finish
Black

Physical

Weight
5.2 lbs
Width
4.13 Inch
Length
11.92 Inch
Height
1.81 Inch

Certification

Safety Rating
cULus Listed
Type IC
Y
Location Rating
Wet
Indoor
Y
ROHS
Y
FCC
Y
Class 2
Y
Item Number Length Input Voltage Wattage UOM
ADPT-DRJ-288-24 11.92 Inch 100-277V AC 288 W Each
