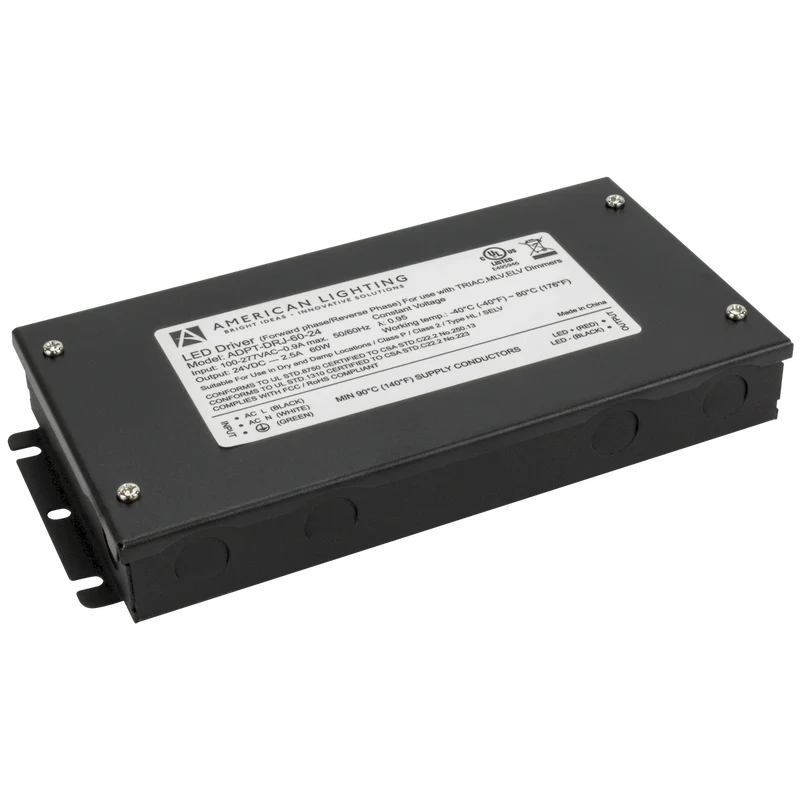

Adaptive Driver with Enclosed Leads and Knockouts 60 Watts 24V DC
SKU
ADPT-DRJ-60-24
24VDC 60W PHASE CUT CONSTANT VOLTAGE DRIVER W/JUNCTION, with 3/8� cable clamp (2 sets)
Performance
Input Voltage
100-277V AC
Output Voltage
24V DC
Output Frequency
2.5A
Wattage
60 W
Power Factor
0.98@120V 0.95@277V
Minimum Load
6 W
Temperature Range
-40C (-40F) to 60C (140F) degrees
Dimming
Phase Dimming / MLV / ELV / TRIAC 0-10V
Finish
Black
Physical
Weight
2.10 lbs
Width
3.54 Inch
Length
7.4 Inch
Height
1.02 Inch
Certification
Safety Rating
cULus Listed
Type IC
Y
Location Rating
Wet
Indoor
Y
ROHS
Y
FCC
Y
Class 2
Y
| Item Number | Length | Input Voltage | Wattage | UOM |
|---|---|---|---|---|
| ADPT-DRJ-60-24 | 7.4 Inch | 100-277V AC | 60 W | Each |
