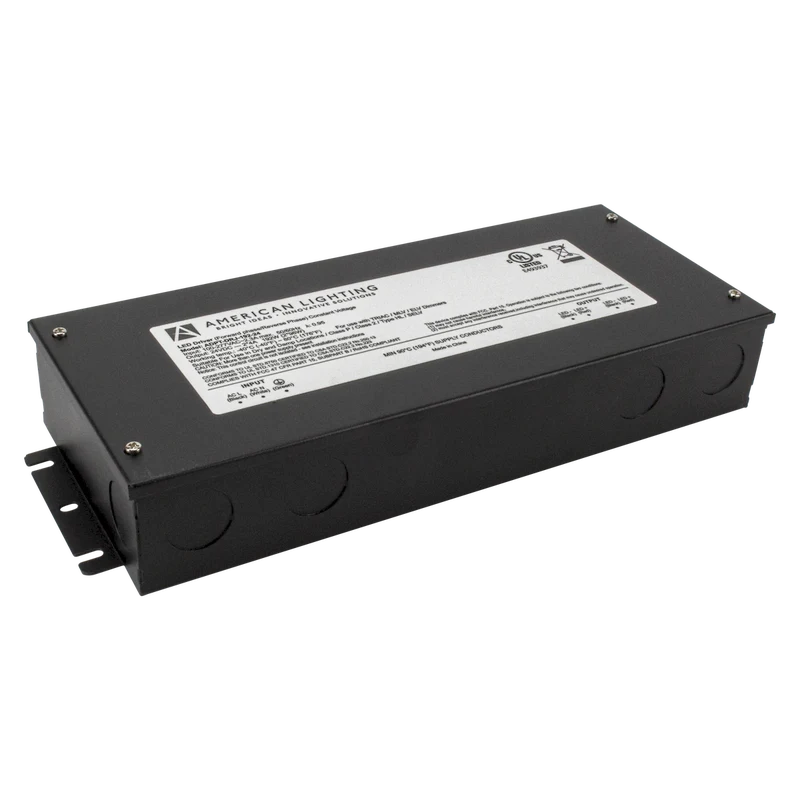

Adaptive PRO Driver with Enclosed Leads and Knockouts 192 Watts 24V DC

SERIES
ADPTPRO-DRJ-192-24

The Adaptive Pro 5-in-1 dimmable Class 2 drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a low profile aluminum enclosure that includes knock-outs for easy installation in any low voltage application.

  • 24V DC Constant voltage 192W (2 x 96W) hardwire LED drivers
  • 5-in-1 Forward and Reverse Phase Dimming:
    ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer
  • Dedicated line voltage and low voltage wiring compartments
  • Short circuit, over-load, and over temperature protections
  • Class 2 / Type HL / FCC Compliant
  • cULus Listed - Wet location rated
    Adaptive PRO Driver with Enclosed Leads and Knockouts 192 Watts 24V DC
    Adaptive PRO Driver with Enclosed Leads and Knockouts 192 Watts 24V DC

    Performance

    Input Voltage
    100-277V AC
    Output Voltage
    24V DC
    Output Frequency
    2.5A
    Wattage
    192 W
    Power Factor
    0.99@120VAC 0.94@277VAC
    Minimum Load
    19.2 W
    Temperature Range
    -40C (-40F) to 60C (140F) degrees
    Dimming
    Phase Dimming / MLV / ELV / TRIAC 0-10V
    Finish
    Black

    Physical

    Weight
    4.7 lbs
    Width
    4.33 Inch
    Length
    10.9 Inch
    Height
    1.88 Inch

    Certification

    Safety Rating
    cULus Listed
    Type IC
    Y
    Location Rating
    Wet
    Indoor
    Y
    ROHS
    Y
    FCC
    Y
    Class 2
    Y
    Item Number Length Input Voltage Wattage UOM
    ADPTPRO-DRJ-192-24 10.9 Inch 100-277V AC 192 W Each
