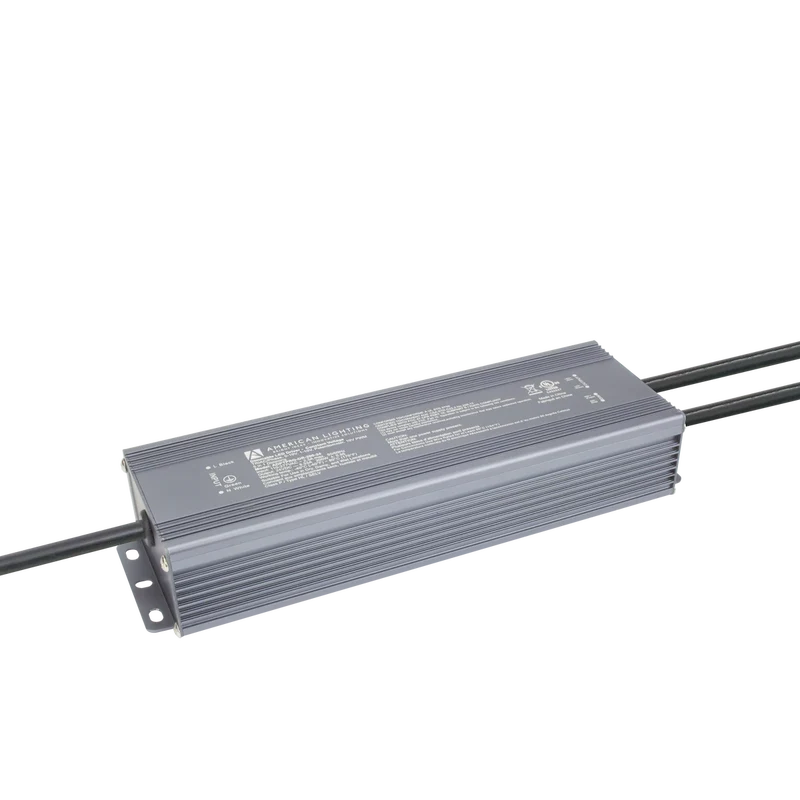

Adaptive PRO Driver 200 Watts 24V DC
SKU
ADPTPRO-DR-200-24
The Adaptive Pro 5-in-1 dimmable drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a sealed low profile aluminum enclosure Suitable for outdoor locations.
- 24V DC Constant voltage 200W hardwire LED driver
- 5-in-1 Forward and Reverse Phase Dimming:
ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer - Class I metal housing (Type HL)
- 8” (SJTW) Lead & Tail Wire
- Short circuit, over-load, and over temperature protections
- Class P / Type HL / FCC Compliant
- cULus Listed - Wet location rated
Performance
Input Voltage
100-277V AC
Output Voltage
24V DC
Input Frequency
47-63 Hz
Output Frequency
8.33A
Wattage
200 W
Power Factor
0.98@120VAC 0.95@277VAC
Minimum Load
20 W
Temperature Range
-40C (-40F) to 60C (140F) degrees
Dimming
Phase Dimming / MLV / ELV / TRIAC 0-10V
Finish
Black
Physical
Weight
3.50 lbs
Width
3.07 Inch
Length
9.37 Inch
Height
1.85 Inch
Certification
Safety Rating
cULus Listed
Type IC
Y
Airtight
Y
Location Rating
Wet
Indoor
Y
Outdoor
Y
ROHS
Y
FCC
Y
| Item Number | Length | Input Voltage | Wattage | UOM |
|---|---|---|---|---|
| ADPTPRO-DR-200-24 | 9.37 Inch | 100-277V AC | 200 W | Each |
