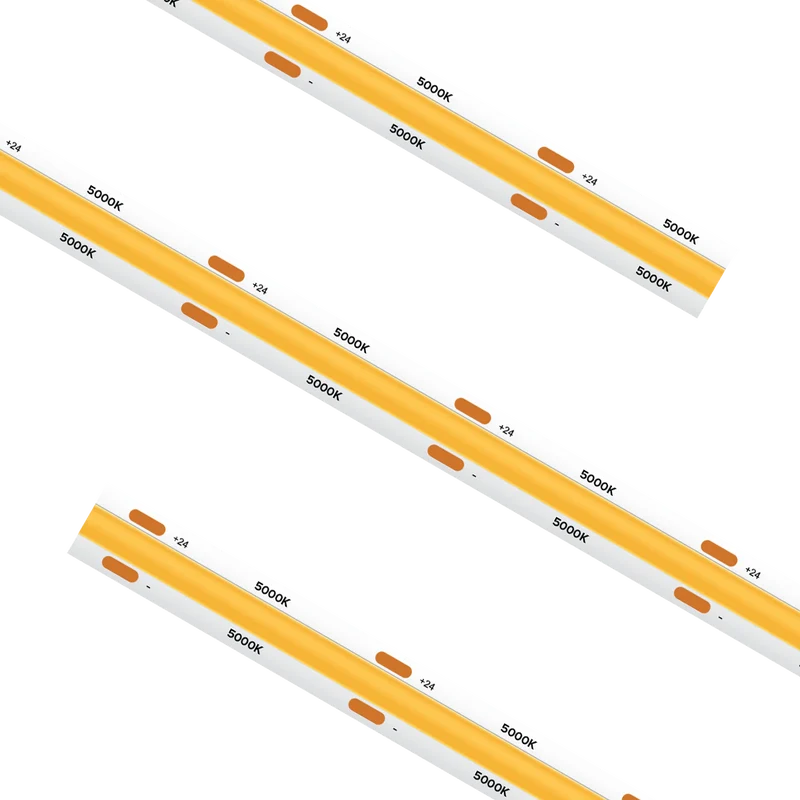

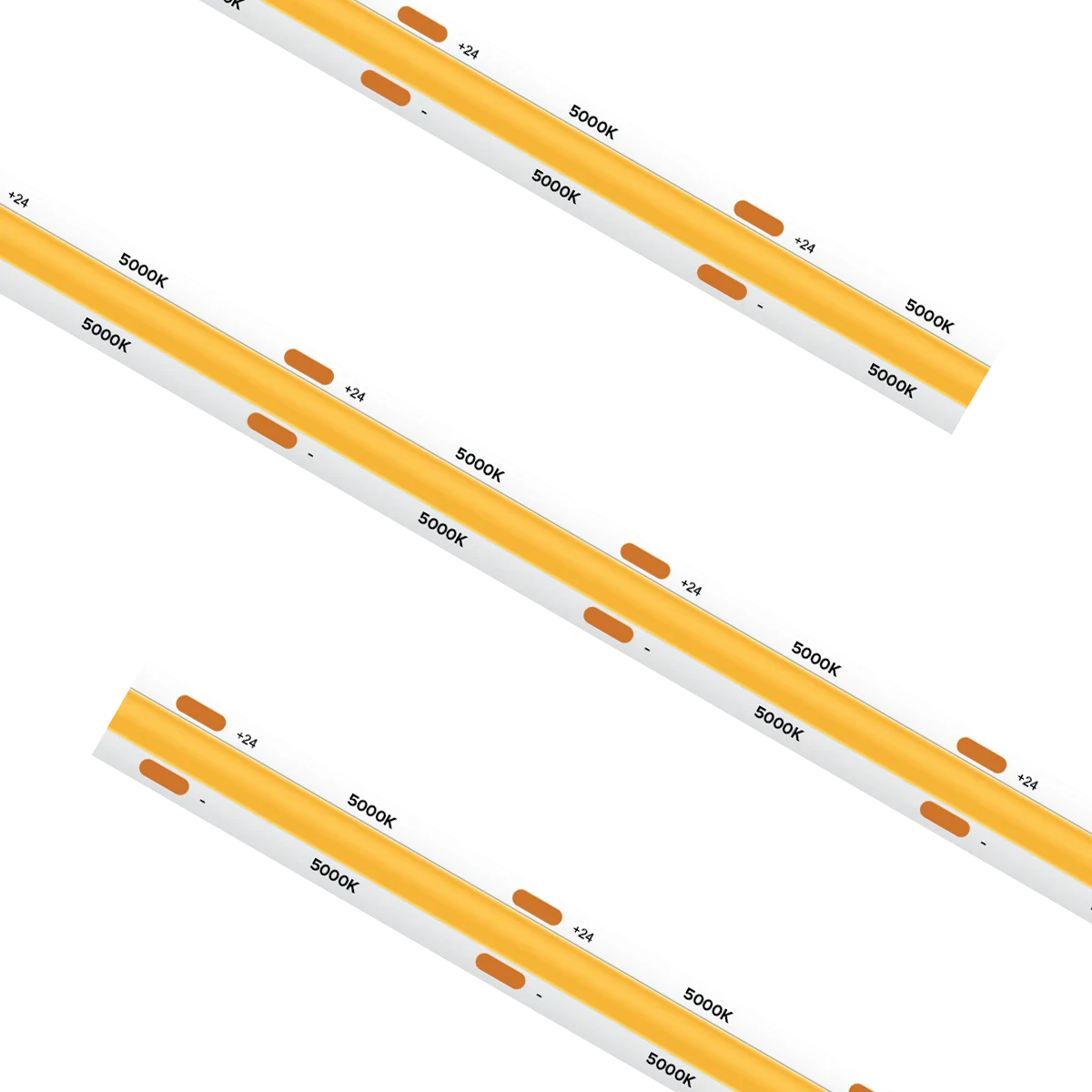

High Output Max Run COB Tape Light
SERIES
C-AML-HTMR-COB
For large scale projects, the Max Run series provides a more convenient installation by minimizing drivers and connections. Max Run tape is a great tool for lighting coves, corridors, lobbies, and retail spaces featuring a max run length up to 32.8 feet.
- Achieve longer max runs perfect for larger installations while still benefiting from the seamless look of COB
- Excellent color rendering (90+ CRI)
- Up to 280 lumens per foot performance
- Consuming up to 3 watts per foot
- Max run lengths up to 32.8 feet and cuttable every 1.64”
- IP54 rating featuring nano-coating protective layer
- Dimmable (5-100%) with most ELV, TRIAC dimmers
- cULus Listed for indoor dry/damp locations
- 50,000 hours rated life
Performance
Input Voltage
24V DC
Wattage
3W/ft
Cut Increment
1.64in
Max Run
32.8ft
Rated Life (Hr)
50,000
Temperature Range
-40°C (-40°F) to 60°C (140°F)
Dimming
TRIAC / ELV (5-100%)
Lumens
Up to 280Lm/ft
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Dry/Damp Locations
Indoor
Y
| Item Number | Length | Input Voltage | CCT | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| HTMR-COB-UWW-49 | 49.2 Foot | 24V DC | 2700K | 3 W/ft | 220 | 32.8 ft | IP54 | Each |
| HTMR-COB-WW-49 | 49.2 Foot | 24V DC | 3000K | 3 W/ft | 240 | 32.8 ft | IP54 | Each |
| HTMR-COB-NW-49 | 49.2 Foot | 24V DC | 3500K | 3 W/ft | 250 | 32.8 ft | IP54 | Each |
| HTMR-COB-WH-49 | 49.2 Foot | 24V DC | 4000K | 3 W/ft | 270 | 32.8 ft | IP54 | Each |
| HTMR-COB-CW-49 | 49.2 Foot | 24V DC | 5000K | 3 W/ft | 280 | 32.8 ft | IP54 | Each |
