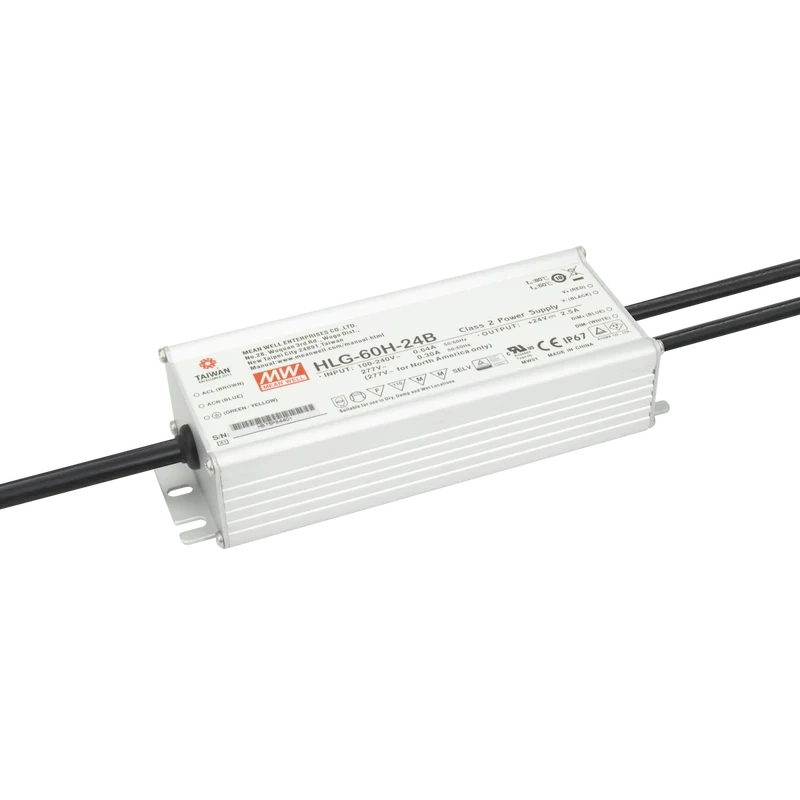

CCV Driver 60 Watts 24V DC
SKU
CCV-DR60-24
CC & 24VDC DRIVER, 60W, 90-305V INP, cURus, CLASS 2, IP65,,1-10VDC,PWM OR RESIST. DIMMING
Performance
Input Voltage
90-305V AC
Output Voltage
24V DC
Input Frequency
47-63 Hz
Output Frequency
2.5A
Wattage
60 W
Power Factor
≥0.98/115V AC ≥0.95/230V AC ≥0.92/277V AC
Minimum Load
36 W
Temperature Range
-40C (-40F) to 80C (176F) degrees
Dimming
PMV 0-10V
Physical
Weight
1.59 lbs
Width
2.42 Inch
Length
6.73 Inch
Height
1.44 Inch
Certification
Safety Rating
cURus Recognized
Airtight
Y
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
Class 2
Y
| Item Number | Length | Input Voltage | Wattage | IP Rating | UOM |
|---|---|---|---|---|---|
| CCV-DR60-24 | 6.73 Inch | 90-305V AC | 60 W | IP65 | Each |
