Channel Rays Static White

SERIES

C-AML-CR

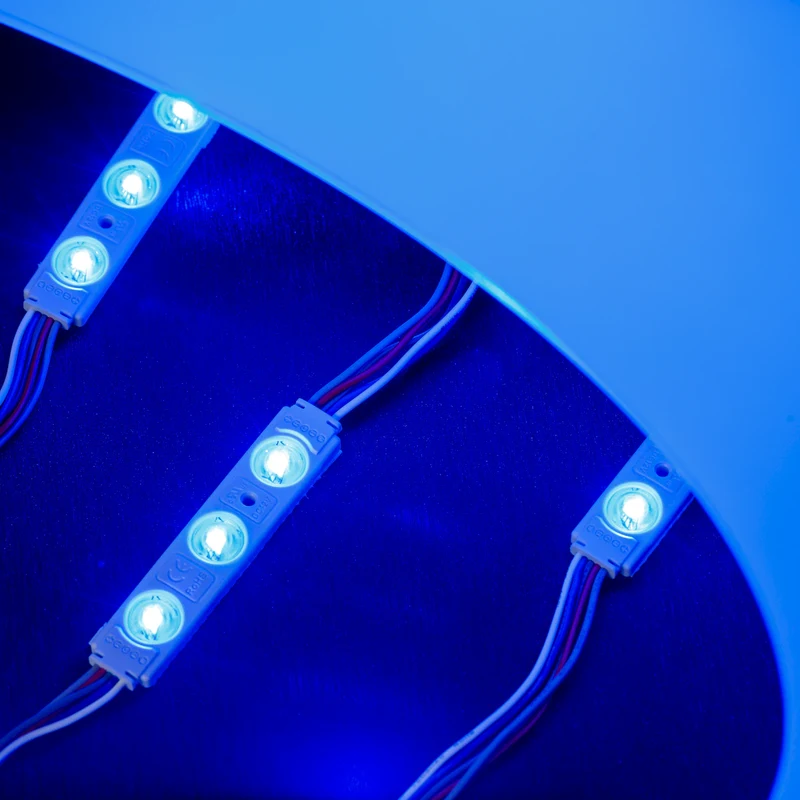

Channel Ray LED Modules are designed to be a versatile solution for sign and display lighting applications. With high quality optics, each module creates broad, uniform illumination without hotspots. 3M™ adhesive backing simplifies set up and take down for temporary applications like trade show displays.

Adhesive backing allows for easy, secure installation
Maximum runs up to 20 modules
IP66 rating - suitable for wet locations
cURus recognized
50,000 hours rated life
20 modules per string

Specifications

Performance

Input Voltage

24V DC

CCT

3000K / 6000K

Finish

White

Wattage

1.2W

Optics (Degree)

170 Degrees

CRI

90+

Max Run

Dependant on capacity of power supply

Rated Life (Hr)

50,000 Hours

Dimming

Non-Dimmable

Lumens

Up to 220Lm

Certification

Safety Rating

cETLus Listed

IP Rating

IP66

Location Rating

Wet

Indoor

Ordering Information

Item Number	Length	Input Voltage	CCT	CRI	Wattage	Lumens	Max Run	IP Rating	UOM
CR3-24VDC-30-5-20	170 Inch	24V DC	3000K	≥70	1.08 W/module	68	20 units	IP66	Each
CR3-24VDC-60-5-20	170 Inch	24V DC	6000K	≥70	1.08 W/module	68	20 units	IP66	Each
CR4-24VDC-30-5-20	167.8 Inch	24V DC	3000K	≥70	1.2 W/module	220	20 units	IP66	Each
CR4-24VDC-60-5-20	167.8 Inch	24V DC	6000K	≥70	1.2 W/module	220	20 units	IP66	Each
