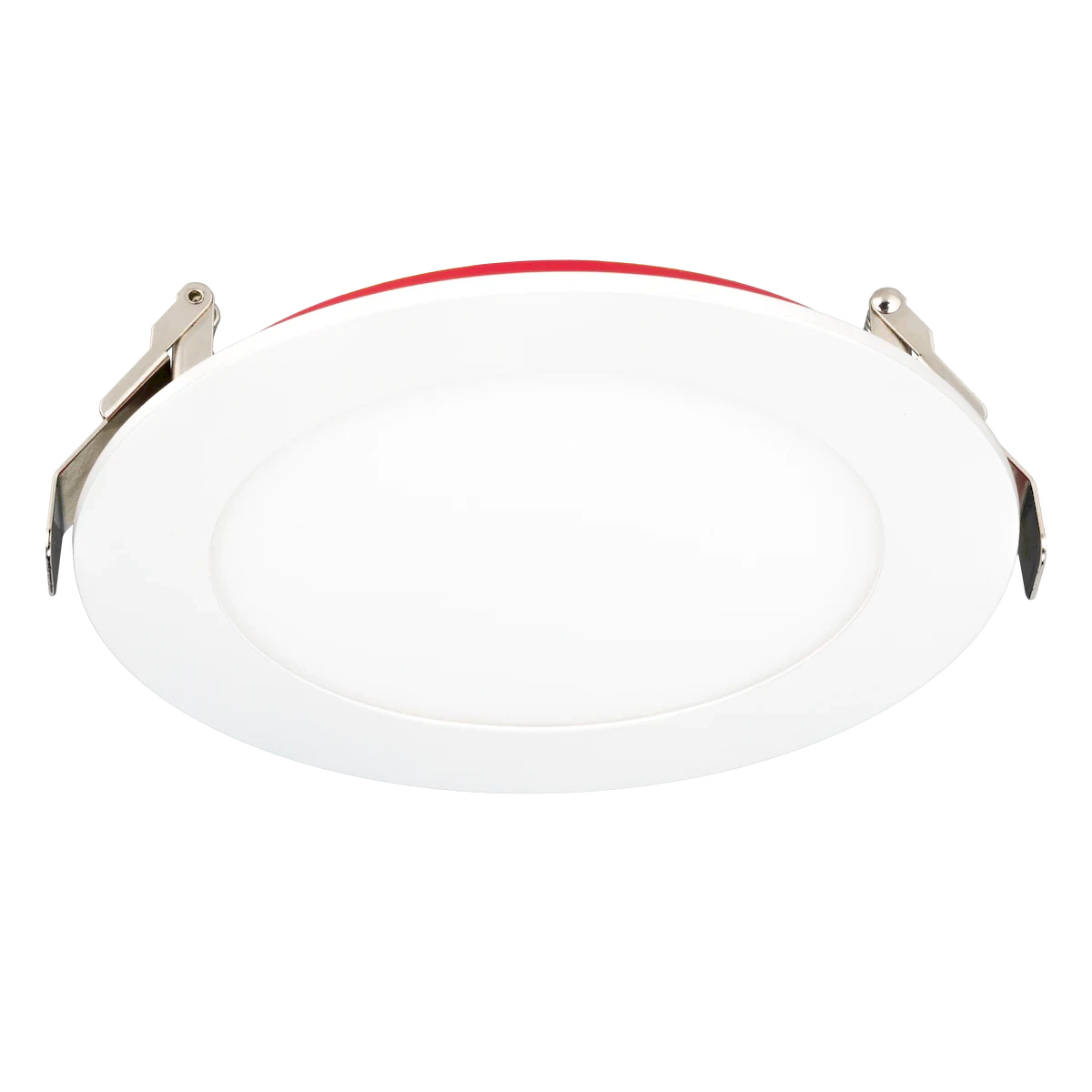

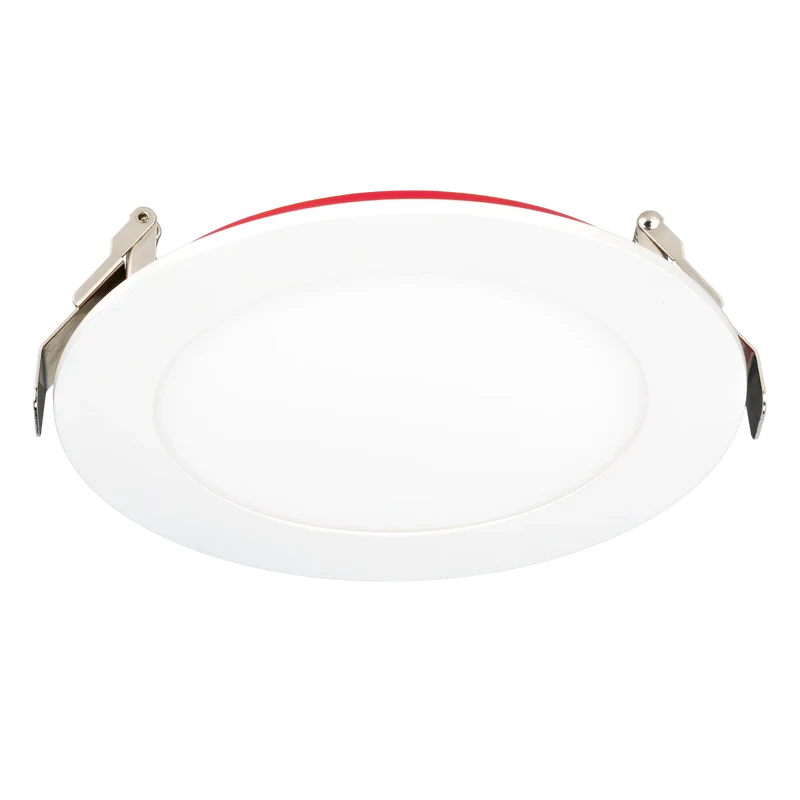

6inch Fire Rated Downlight, Slim Flat, White Finish
SKU
FRD-SLIM-5CCT-6-WH
The fire rated downlight offers five color temperatures in one compact package. This built-in feature provides a simple way to update lighting to match a new color scheme or design. Available in Slim, Slim with baffle, and deep baffle configurations to suit your desired aesthetics.
- Excellent color rendering (90+ CRI)
- Aluminum housing with polycarbonate lens
- Five selectable color temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
- Lumen output up to 1100 Lumens
- Dimmable with most TRIAC dimmers

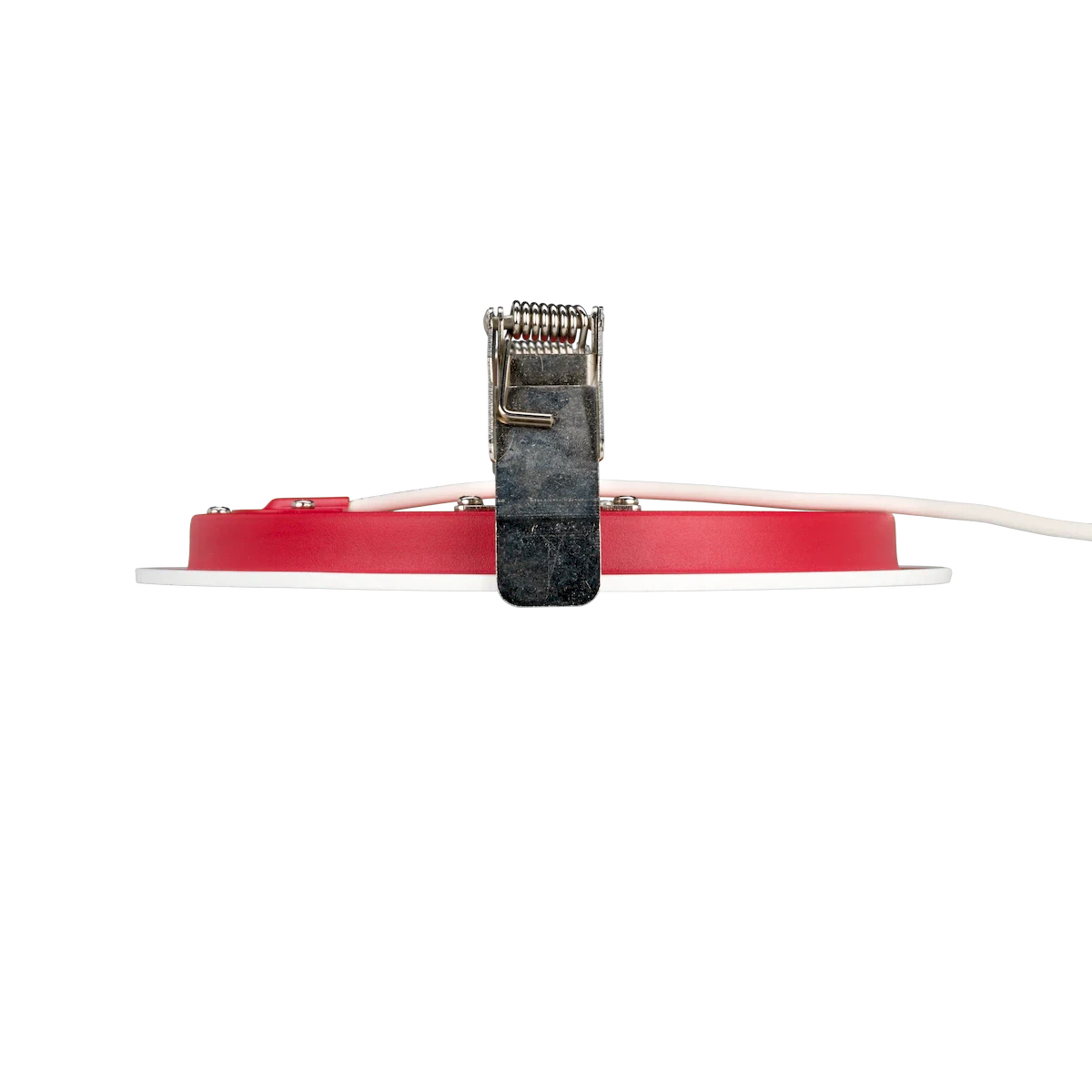

- Spring loaded mounting clips
- Type IC and cETLus Listed for indoor, wet locations
- 50,000 hours rated life
- ENERGY STAR Certified and JA8 Compliant
- The FRD series has been listed to UL263, ASTM E119 and CAN ULC S101 by SGS. The FRD series has been tested and approved for 2-hour Fire Rating with the most floor and ceiling fire rated assemblies including: UL L505, L511, L536, L538, L541, L556, L577, M500, M510, M521, & M543
Performance
Input Voltage
100-277V AC
Wattage
15 W
CCT
5CCT
CRI
90
Lumens
1100
Rated Life (Hr)
50,000 Hours
Dimming
0-10 V
Style
Slim
Physical
Weight
2.34 lbs
Length
6 Inch
Certification
Title 24
Y
Type IC
Y
Indoor
Y
FCC
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | UOM |
|---|---|---|---|---|---|---|---|
| FRD-SLIM-5CCT-6-WH | 6 Inch | 100-277V AC | 5CCT | 90 | 15 W | 1100 | Each |
