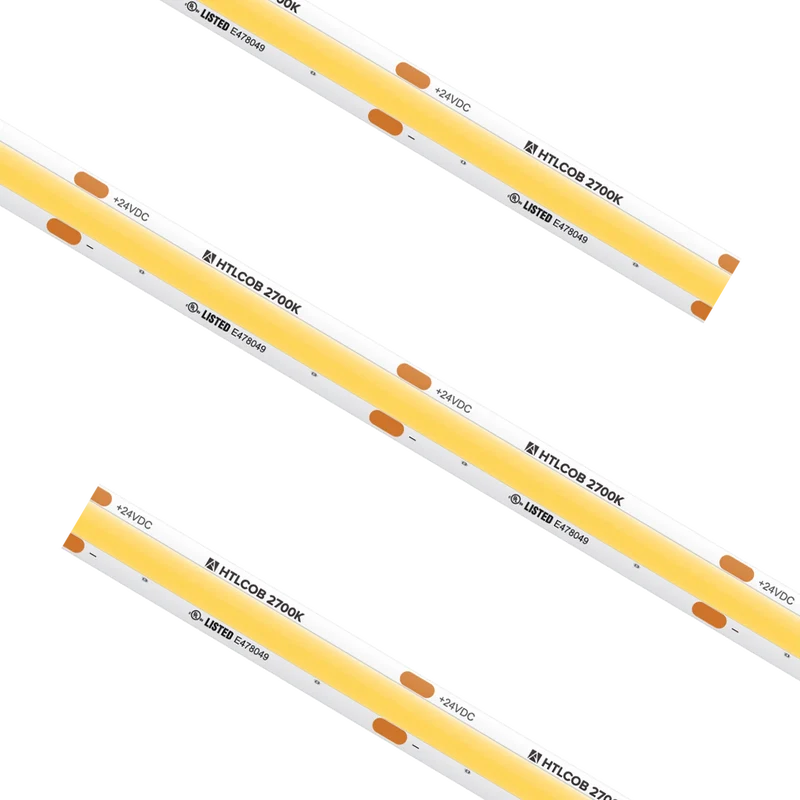

High Output COB Tape Light IP54 2700K 16.4Ft
SKU
HTL-COB-UWW-16
16.4ft Reel HTL COB Tape Light, IP54, 1.96" cut increment, 2700K, 4.5W/ft, W/3 TL-CONKITS, W/3 TL-2PWR-HD
Performance
Input Voltage
24V DC
Wattage
4.5 W/ft
CCT
2700K
CRI
90+
Lumens
369
Cut Increment
1.96 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Physical
Weight
0.90 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| HTL-COB-UWW-16 | 16.4 Foot | 24V DC | 2700K | 90+ | 4.5 W/ft | 369 | 16.4 ft | IP54 | Each |
