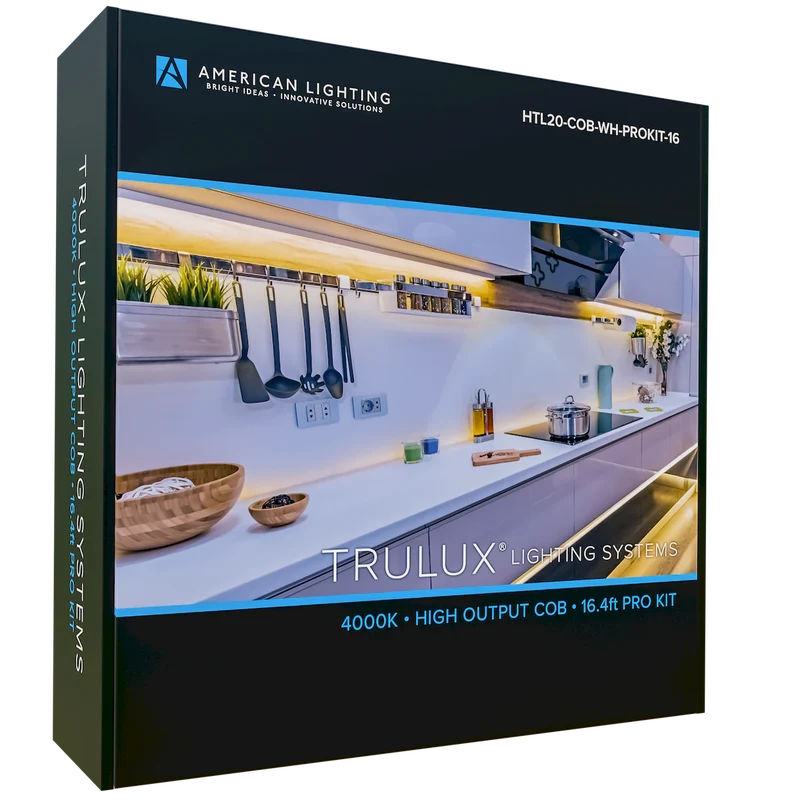

High Output COB Tape Light 4000K 16.4Ft Pro Kit
SKU
HTL20-COB-WH-PROKIT-16
16.4FT TRULUX PRO KIT HIGH OUTPUT IP20 COB 4000K, 4.5W PER FT, 24V, direct wire driver ADPT-DRJ-96-24, (1) 15FT 2PIN wire (20AWG), (3) 2pin Tape to Tape snap connector, (10) 2pin Tape to wire snap connector, (4)wire connector (splicing cond
Performance
Input Voltage
24V DC
Wattage
5 W/ft
CCT
4000K
CRI
90+
Lumens
460
Cut Increment
1.97 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin
Physical
Weight
4.20 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP20
Location Rating
Dry
Indoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| HTL20-COB-WH-PROKIT-16 | 16.4 Foot | 24V DC | 4000K | 90+ | 5 W/ft | 460 | 16.4 ft | IP20 | Each |
Specification Sheets
Instruction Manuals
