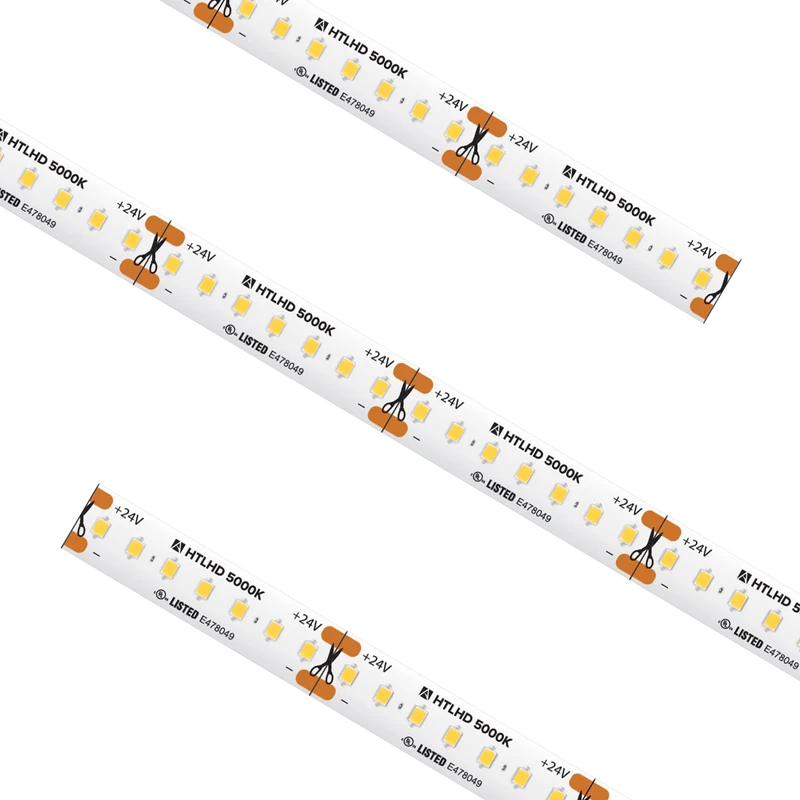

High Output High Density Tape Light IP54 5000K 16.4Ft

SERIES
HTLHD-CW-16
HTL HD HIGH OUTPUT TRULUX,24V,5000K, 16.4FT RL W/3 TL-CONKITS: Y0409676/TL-2PWR-HD 10MM 2PIN CONNECTOR W/6' CABLE, 3.65W/FT.IP54, 94+CRI, 1.51"CUT, 16.4' MAX
High Output High Density Tape Light IP54 5000K 16.4Ft
High Output High Density Tape Light IP54 5000K 16.4Ft

Performance

Input Voltage
24V DC
Wattage
3.65 W/ft
CCT
5000K
CRI
90+
Lumens
370
Cut Increment
1.51 in
Max Run
27 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Spacing
0.21 Inch

Physical

Weight
0.9 lbs
Width
0.03 Foot
Length
16.4 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
HTLHD-CW-16 16.4 Foot 24V DC 5000K 90+ 3.65 W/ft 370 27 ft IP54 Each

Instruction Manuals

IES Files

High Output High Density Tape Light IES Files
