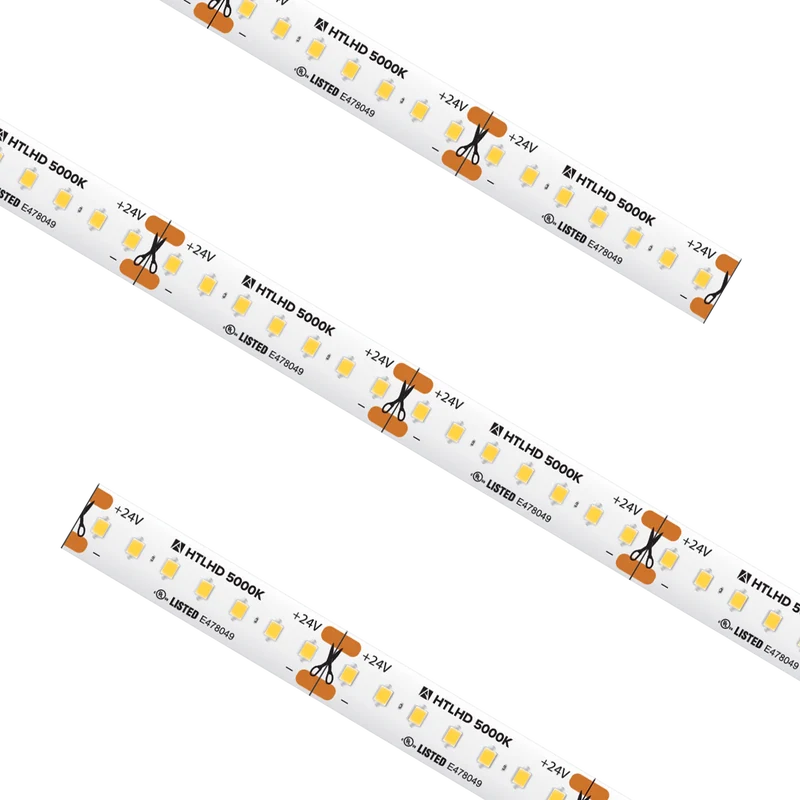

High Output High Density Tape Light IP54 5000K Custom Cut
SKU
HTLHD-CW-CC
HTL HD HIGH OUTPUT TRULUX,24V,5000K, CUSTOM CUT, 3.65W/FT.IP54, 94+CRI, 1.51"CUT, 16.4' MAX
Performance
Input Voltage
24V DC
Wattage
3.65 W/ft
CCT
5000K
CRI
90+
Lumens
370
Cut Increment
1.51 in
Max Run
27 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Spacing
0.21 Inch
Physical
Weight
0.06 lbs
Length
Custom Cut
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| HTLHD-CW-CC | Custom Cut | 24V DC | 5000K | 90+ | 3.65 W/ft | 370 | 27 ft | IP54 | Foot |
