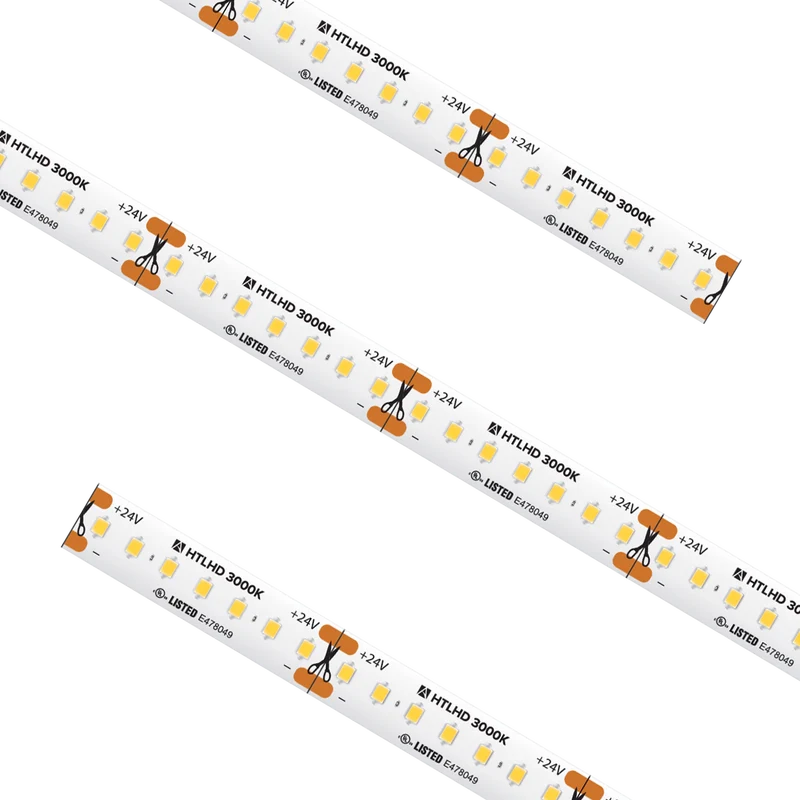

High Output High Density Tape Light IP54 3000K 100Ft

SERIES
HTLHD-WW-100
HTL HD HIGH OUTPUT TRULUX,24V,3000K
High Output High Density Tape Light IP54 3000K 100Ft
High Output High Density Tape Light IP54 3000K 100Ft High Output High Density Tape Light IP54 3000K 100Ft

Performance

Input Voltage
24V DC
Wattage
3.65 W/ft
CCT
3000K
CRI
90+
Lumens
335
Cut Increment
1.51 in
Max Run
27 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Spacing
0.175 ft

Physical

Weight
2.6 lbs
Width
0.03 Foot
Length
100 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
HTLHD-WW-100 100 Foot 24V DC 3000K 90+ 3.65 W/ft 335 27 ft IP54 Each

Instruction Manuals

IES Files

High Output High Density Tape Light IES Files
