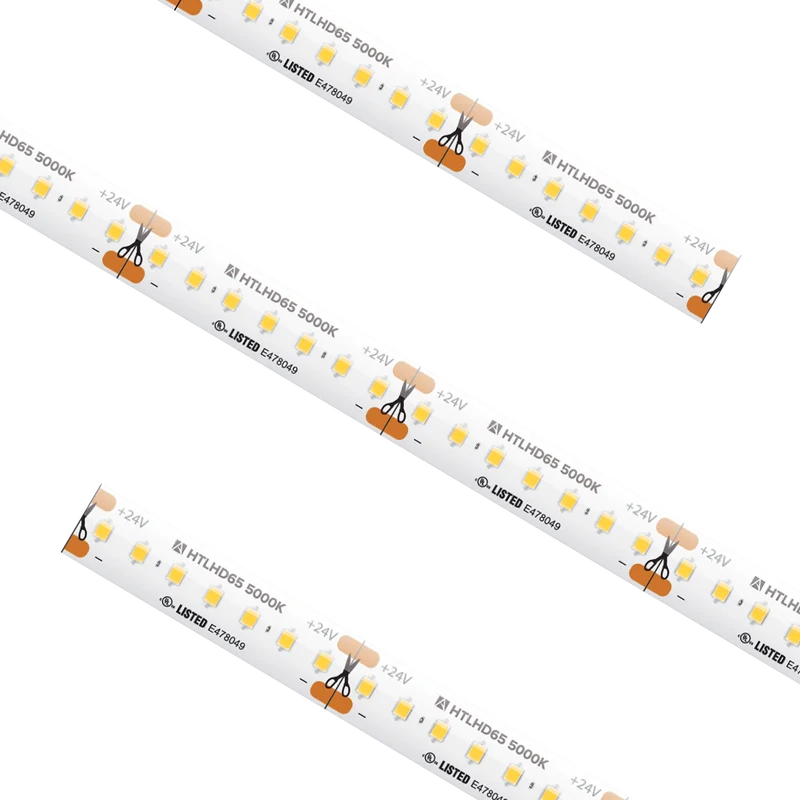

High Output High Density Tape Light IP65 5000K 16.4Ft
SKU
HTLHD65-CW-16
16.4ft Reel HTLHD Tape Light, IP65, 1.51" cut increment, 5000K, 3.65W/ft
Performance
Input Voltage
24V DC
Wattage
3.65 W/ft
CCT
5000K
CRI
90+
Lumens
350
Cut Increment
1.51 in
Max Run
27 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Spacing
0.21 Inch
Physical
Weight
0.65 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| HTLHD65-CW-16 | 16.4 Foot | 24V DC | 5000K | 90+ | 3.65 W/ft | 350 | 27 ft | IP65 | Each |
Specification Sheets
Instruction Manuals
A STEP-BY-STEP GUIDE FOR YOUR NEXT TAPE LIGHT PROJECT IS HERE.
ACE, American Lighting’s product configurator offers a simple step-by-step guide to walk you through your tape light project. Made to be used by beginners and lighting professionals alke ACE assures that you have a complete list of materials for a beautiful linear lighting installation.
LEARN MORE
