Festoon 3000K Custom Cut

SERIES
LFS-12V-1-LED-WW

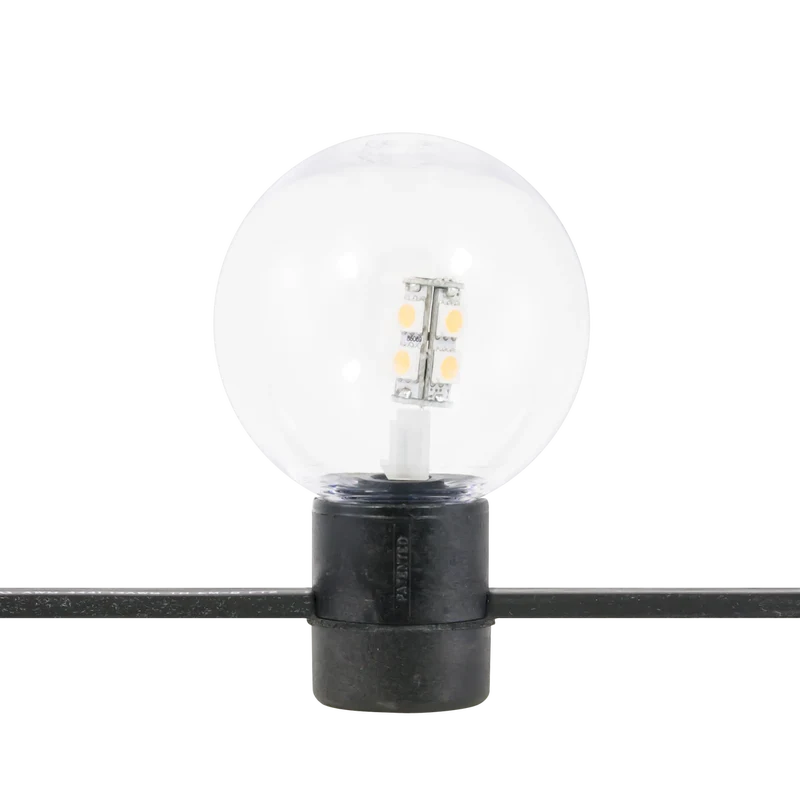

LED Festoon Socket Assembly*, Black, 1.0W; 2950K; Max run 200W; 50,000 hours rated life; Dimmable with PWM; Factory-machined to cable (sold separately); Req. 12V power supply
Festoon 3000K Custom Cut
Festoon 3000K Custom Cut Festoon 3000K Custom Cut

Performance

Input Voltage
12V DC
Output Voltage
12V DC
Input Frequency
50-60Hz
Lens Details
Polycarbonate
UV Inhibitor
N
Wattage
1 W/module
CCT
3000K
CRI
74+
Lumens
90
Max Run
300 W
Rated Life (Hr)
80,000 Hours
Dimming
Non-Dimmable
Finish
Black

Physical

Weight
3.33 lbs

Certification

Safety Rating
cULus Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
Item Number Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
LFS-12V-1-LED-WW 12V DC 3000K 74+ 1 W/module 90 300 W IP65 Each
