Minuet 4X6 Static White
SERIES
C-AML-MIN4X6

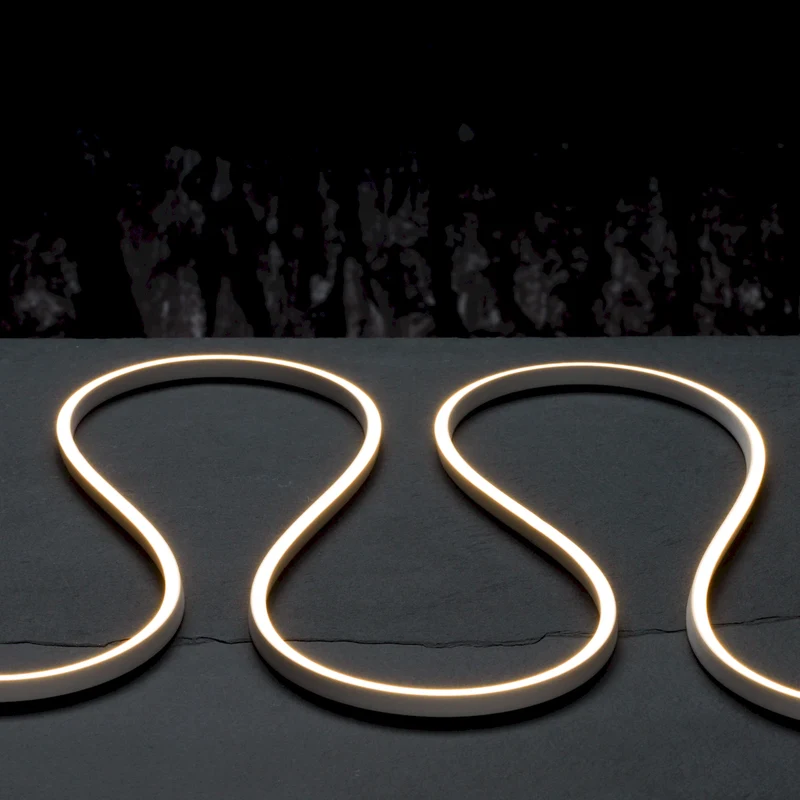

Featuring fully encased tape light, Minuet provides smooth evenly diffused light that eliminates the needs for additional extrusion housings and lenses. With light emitting from three sides, Minuet is a unique product that can be used in small spaces, or be placed on in direct view to meet the needs of dynamic lighting installations.
- Low-profile, flexible light strip in 4x6 side bend
- UV, flame, and saltwater resistant (IP65) silicone coating
- Long life LEDs produce high lumen output
- Durable housing with 2.36” bending radius
- Cuttable anywhere with a maximum run of 16.4 feet
- Dimmable with most TRIAC, ELV, or CL dimmers
- Suitable for woodwork & cabinetry, coves, frame, bars, rails, and other areas where a small profile or outline of light is needed
- cULus Listed for wet locations
Performance
Input Voltage
24V DC
CCT
2700K / 3000K / 4000K
Finish
White
Wattage
2.43W/ft
Optics (Degree)
120 Degrees
Cut Increment
Cut Anywhere
Max Run
16.4ft
Rated Life (Hr)
50,000 Hours
Temperature Range
-40°C (-40°F) to 55°C (131°F)
Dimming
Dimmable (5-100%) with most ELV, TRIAC dimmers
Lumens
93-105Lm/ft
Certification
Safety Rating
cULus Listed
IP Rating
IP65
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | Max Run | UOM |
|---|---|---|---|---|---|
| MIN4X6-27K-16 | 16.4 Foot | 24V DC | 2700K | 16.4 ft | Each |
| MIN4X6-30K-16 | 16.4 Foot | 24V DC | 3000K | 16.4 ft | Each |
| MIN4X6-40K-16 | 16.4 Foot | 24V DC | 4000K | 16.4 ft | Each |
