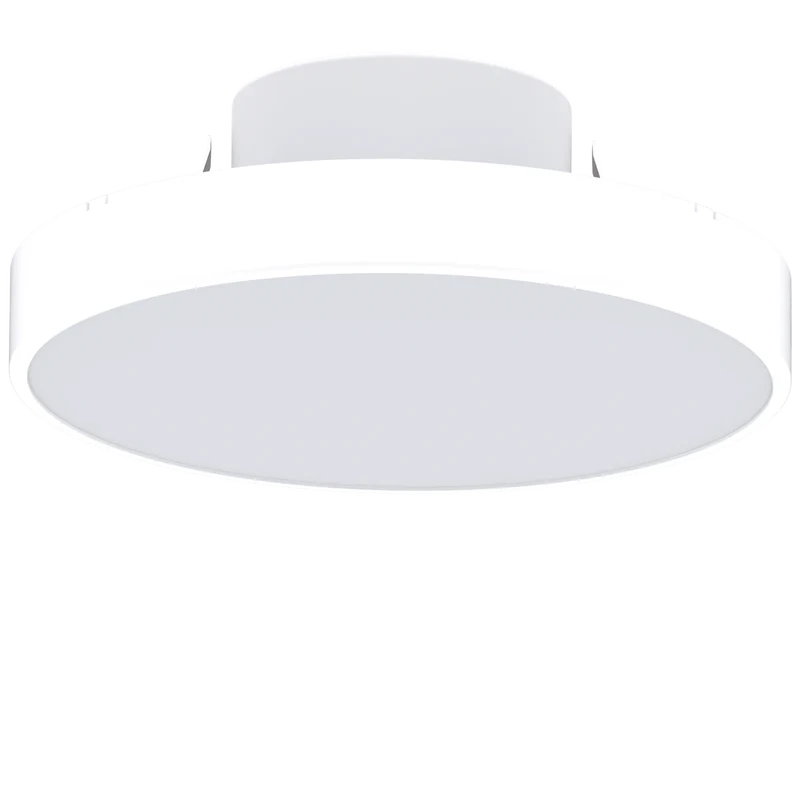

Nieve 5in Downlight

SERIES
C-AML-NV5

Ultra slim and modern sleek, the NIEVE series downlight features an edgeless surface mount design that blends seamlessly into its surroundings. With uniform light output, the NIEVE 5 produces up to 750 vivid lumens in a 3000K warm white color temperature. Available in TRIAC and 0-10V dimmable versions for use in both residential and commercial applications.

  • Excellent color rendering (90+ CRI)
  • Modern surface mount design
  • Up to 750 lumen output performance
  • 3000K color temperature with 90+ CRI
  • Surface mount installation to most octagonal junction boxes
  • Dimmable with most TRIAC dimmers
  • cETLus Listed for wet locations
  • 35,000 hours rated life
  • ENERGY STAR certified and JA8 Compliant
Nieve 5in Downlight
Nieve 5in Downlight

Performance

Input Voltage
120-277VAC
CCT
3000K
Finish
White
Wattage
10W
Optics (Degree)
150 degrees
CRI
90+
Rated Life (Hr)
50,000 Hours
Temperature Range
-10°C (14°F) to 50°C (122°F)
Dimming
Dimmable (10-100%) with most ELV, TRIAC dimmers / Dimmable (1-100%) with most 0-10V dimmers
Lumens
750Lm

Certification

Safety Rating
cETLus Listed
Location Rating
Wet
Energy Star
Y
Title 24
Y
Indoor
Y
FCC
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens UOM
NV5-30-WH 5 Inch 120-277V AC 3000K 90+ 10 W 750 Each
NV5-0/10V-30-WH 5 Inch 120-277V AC 3000K 90+ 10 W 750 Each
