Nieve 7 (0-10v)

SERIES
NV7-0/10V-30-WH

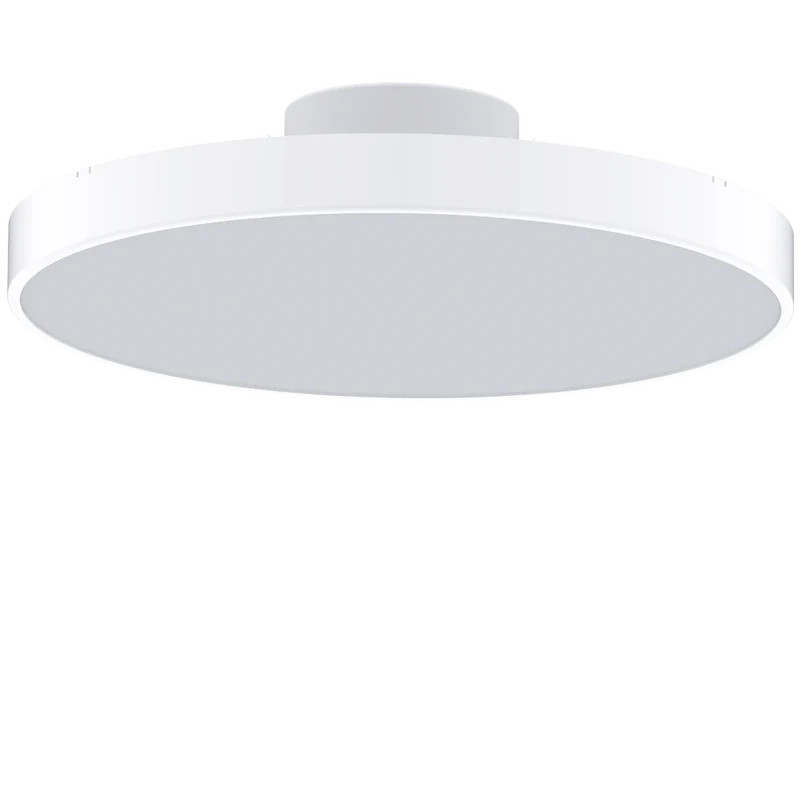

7" Nieve Ceiling light, 120V-277V with 0-10V Dimming, 7" Trim, 3000K
Nieve 7 (0-10v)
Nieve 7 (0-10v) Nieve 7 (0-10v) Nieve 7 (0-10v)

Performance

Input Voltage
120-277V AC
Input Frequency
60Hz
Wattage
15 W
CCT
3000K
CRI
90+
Lumens
1200
Optics (Degree)
150 degrees
Rated Life (Hr)
35,000 Hours
Temperature Range
-10C (14F) to 50C (122F) degrees
Dimming
0-10V 10 - 100%
Finish
White
Control
0-10V

Physical

Weight
1.3 lbs
Length
7 Inch

Certification

Safety Rating
cETLus Listed
Title 24
Y
Location Rating
Wet
Indoor
Y
FCC
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens UOM
NV7-0/10V-30-WH 7 Inch 120-277V AC 3000K 90+ 15 W 1200 Each

Specification Sheets

Instruction Manuals

IES Files
