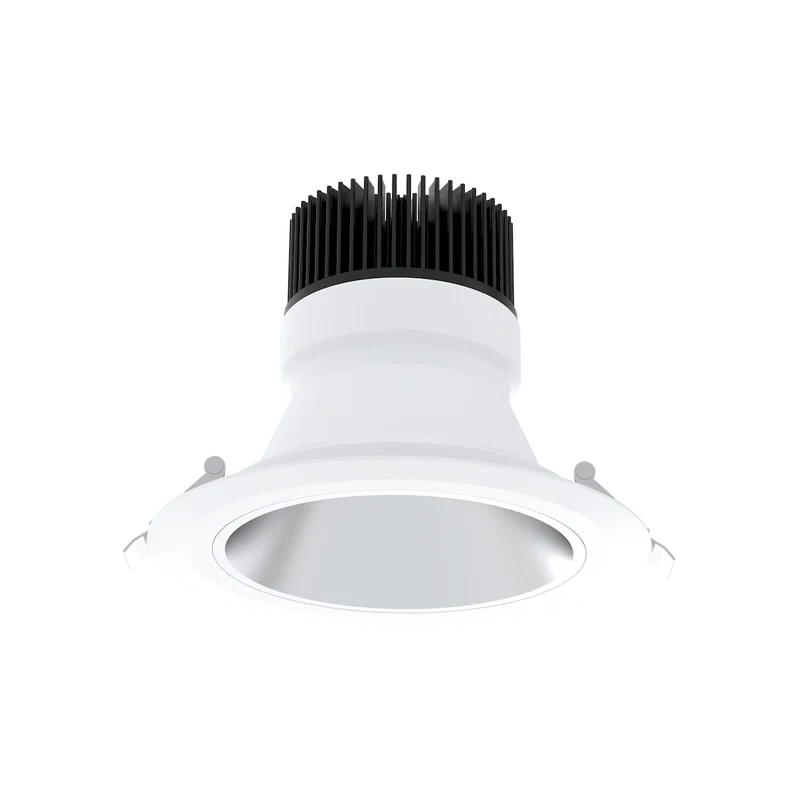

Spec 6

SERIES
SPEC6-5CCT-AZ

Make commercial retrofit projects easier with the Spec Series commercial downlights. Select from five color temperatures with just the flip of a switch ranging from 2700K up to 5000K. Spec series downlights are not only 0-10V dimmable, but also feature three light output settings. Allowing for Low, Medium, and High performance levels to be set on the fly making the Spec series downlights a favorite among installers.

  • Excellent color rendering (90+ CRI)
  • Five Selectable color temperatures:
    2700K / 3000K / 3500K / 4000K / 5000K
  • Up to 2300 Lumen output performance
  • Three light output presets: Low, Medium, High
  • 0-10V Dimmable
  • Remote driver with hardwire junction box
  • Type IC and cETLus Listed for wet locations
  • ENERGY STAR certified
  • JA8 Compliant
  • 50,000 hours rated life
Spec 6
Spec 6

Performance

Input Voltage
120-277V AC
Input Frequency
60Hz
Wattage
18 W
CCT
5CCT
CRI
90+
Lumens
1750
Optics (Degree)
70 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 40C (104F) degrees
Dimming
0-10V 10 - 100%
Finish
Alzak

Physical

Weight
0.06 lbs
Length
6 Inch

Certification

Safety Rating
cETLus Listed
Energy Star
Y
Title 24
Y
Type IC
Y
Location Rating
Wet
Indoor
Y
FCC
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens UOM
SPEC6-5CCT-AZ 6 Inch 120-277V AC 5CCT 90+ 18 W 1750 Each
