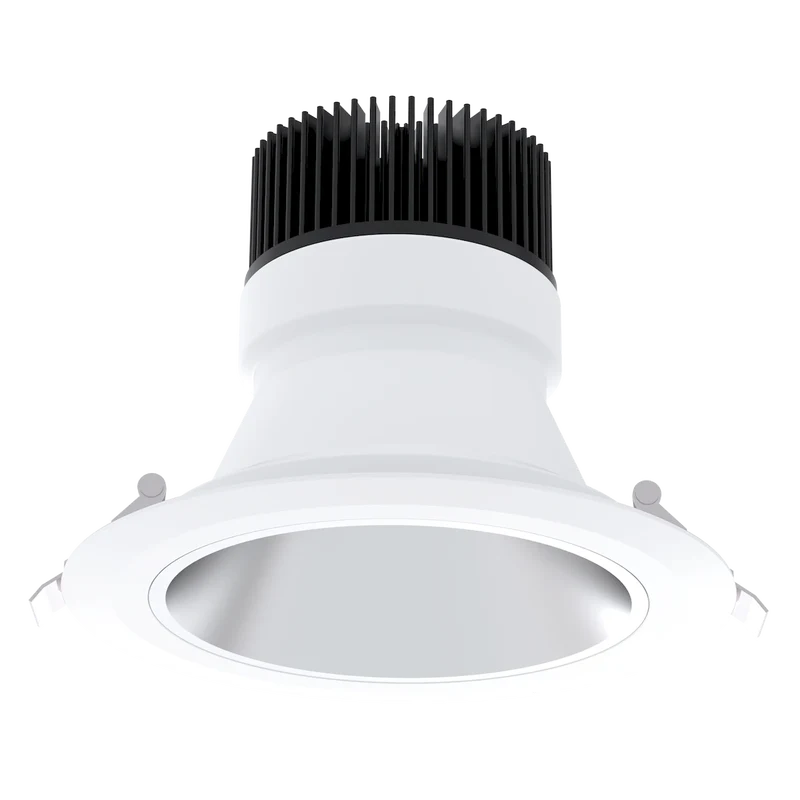

Spec 8
SKU
SPEC8-5CCT-AZ
Make commercial retrofit projects easier with the Spec Series commercial downlights. Select from five color temperatures with just the flip of a switch ranging from 2700K up to 5000K. Spec series downlights are not only 0-10V dimmable, but also feature three light output settings. Allowing for Low, Medium, and High performance levels to be set on the fly making the Spec series downlights a favorite among installers.
- Excellent color rendering (90+ CRI)
- Five Selectable color temperatures:
2700K / 3000K / 3500K / 4000K / 5000K - Up to 3500 Lumen output performance
- Three light output presets: Low, Medium, High
- 0-10V Dimmable
- Remote driver with hardwire junction box
- Type IC and cETLus Listed for wet locations
- ENERGY STAR certified
- JA8 Compliant
- 50,000 hours rated life
Performance
Input Voltage
120-277V AC
Wattage
28 W
CCT
5CCT
CRI
90+
Lumens
2700
Optics (Degree)
70 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to
40C (104F) degrees
Dimming
0-10V 10 - 100%
Finish
Alzak
Physical
Weight
4.00 lbs
Length
8 Inch
Certification
Safety Rating
cETLus Listed
Energy Star
Y
Title 24
Y
Type IC
Y
Location Rating
Wet
Indoor
Y
FCC
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | UOM |
|---|---|---|---|---|---|---|---|
| SPEC8-5CCT-AZ | 8 Inch | 120-277V AC | 5CCT | 90+ | 28 W | 2700 | Each |
