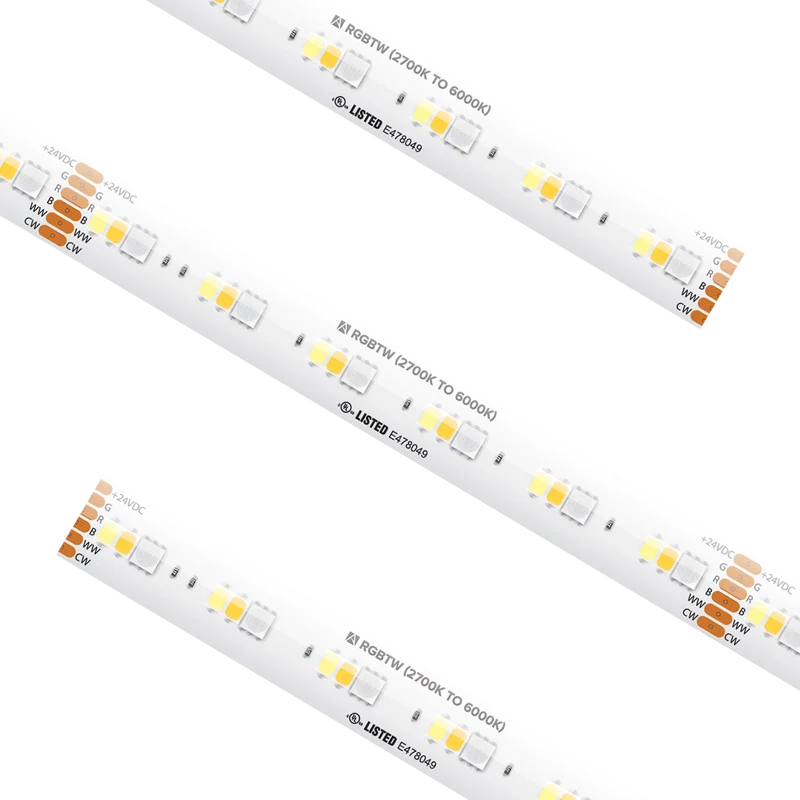

Specification Grade Tape Light IP54 RGBTW 100Ft

SKU
SPTL-RGBTW-100
100FT RGBTW TAPE IP54,24V,7W/FT,368LM/FT, W/5 TL-6PWR
Specification Grade Tape Light IP54 RGBTW 100Ft
Specification Grade Tape Light IP54 RGBTW 100Ft

Performance

Input Voltage
24V DC
Wattage
7 W/ft
CCT
RGBTW
CRI
90+
Lumens
410
Cut Increment
3.94 in
Max Run
13.1 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
PWM 5 - 100%
Spacing
0.66 Inch

Physical

Weight
3.20 lbs
Width
0.03 Foot
Length
100 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
SPTL-RGBTW-100 100 Foot 24V DC RGBTW 90+ 7 W/ft 410 13.1 ft IP54 Each
