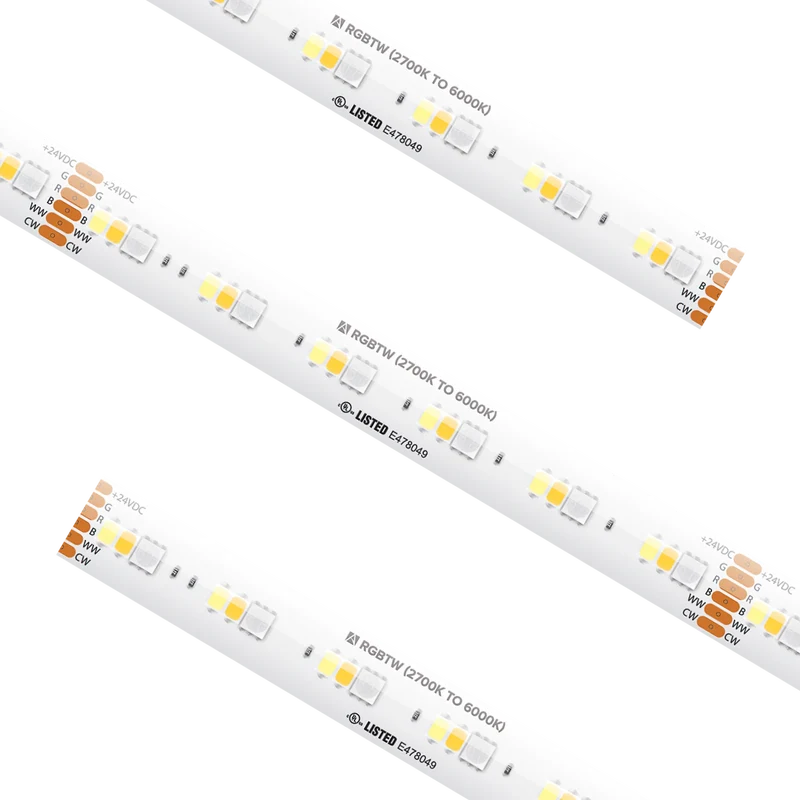

Specification Grade Tape Light IP54 RGBTW Custom Cut
SKU
SPTL-RGBTW-CC
CC RGBTW TAPE IP54,24V,7W/FT,368LM/FT
Performance
Input Voltage
24V DC
Wattage
7 W/ft
CCT
RGBTW
CRI
90+
Lumens
410
Cut Increment
3.94 in
Max Run
13.1 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
PWM 5 - 100%
Spacing
0.66 Inch
Physical
Weight
6.92 lbs
Width
0.03 Foot
Length
Custom Cut
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| SPTL-RGBTW-CC | Custom Cut | 24V DC | RGBTW | 90+ | 7 W/ft | 410 | 13.1 ft | IP54 | Foot |
