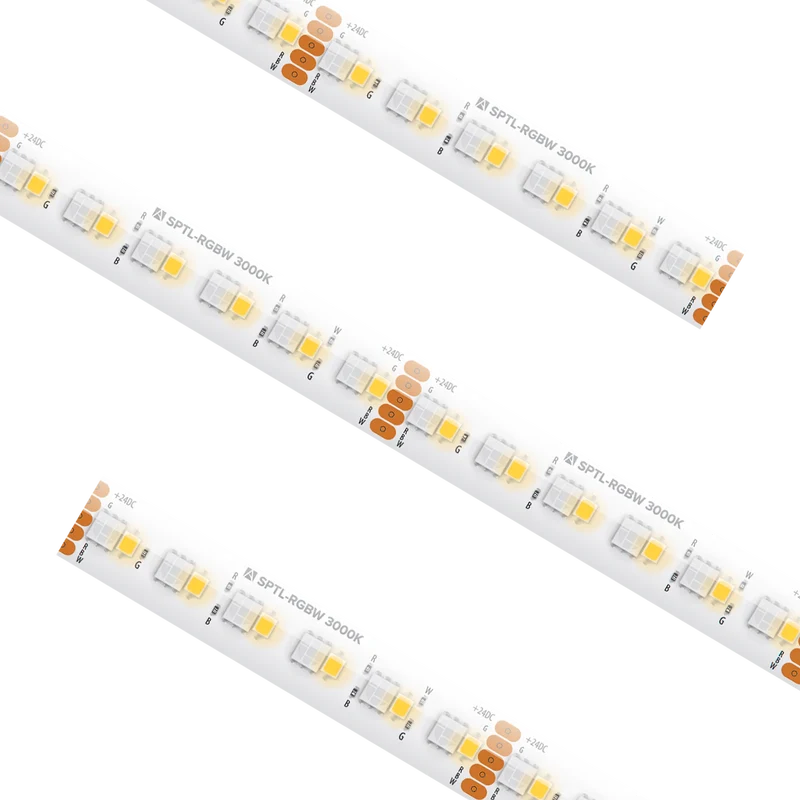

Specification Grade Tape Light IP54 RGBW 16.4Ft

SKU
SPTL-RGBW
16.4ft Reel Spec RGBW Tape; 24V DC, IP54, 7W/ft, Attached 3ft lead wires, (3) TL-5PWR-HD 12mm 5PIN connector (RGB+W) with 6' cable, (3) TL-5SPL-HD
Specification Grade Tape Light IP54 RGBW 16.4Ft
Specification Grade Tape Light IP54 RGBW 16.4Ft

Performance

Input Voltage
24V DC
Wattage
7 W/ft
CCT
RGBW
CRI
90+
Lumens
350
Cut Increment
1.97 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 40C (104F) degrees
Dimming
PWM 5 - 100%
Spacing
0.21 Inch

Physical

Weight
0.90 lbs
Width
0.03 Foot
Length
16.4 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
SPTL-RGBW 16.4 Foot 24V DC RGBW 90+ 7 W/ft 350 16.4 ft IP54 Each

Catalog Cut Sheets

Specification Sheets

Instruction Manuals
