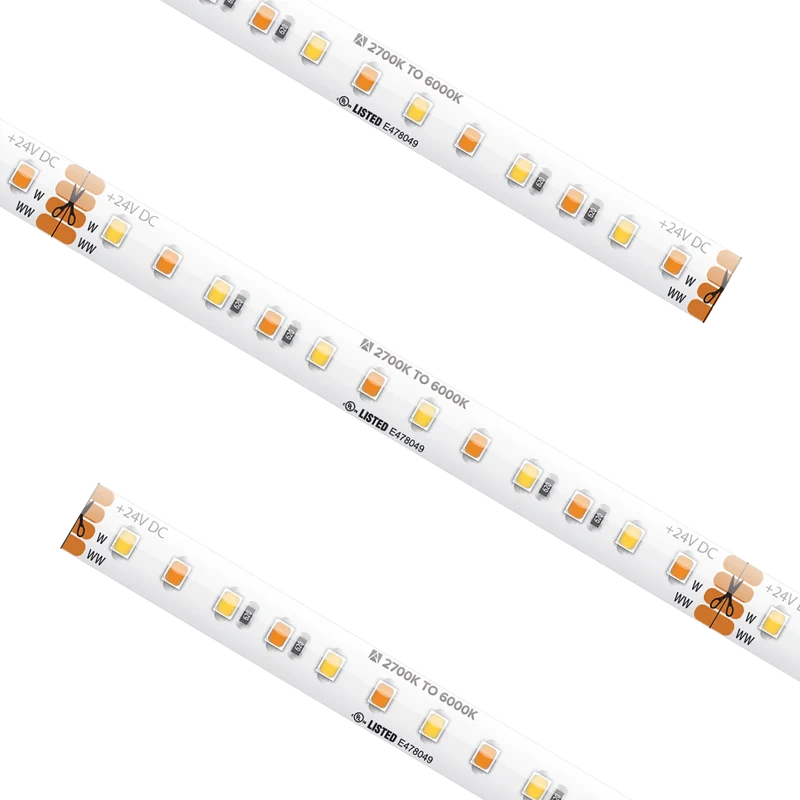

Specification Grade Tape Light IP54 TW 13.1Ft
SKU
SPTL-TW
Need custom color temperature lighting at the turn of a dial? Tunable CCT series is a great option when on the fly color adjustment is a must, or when single CCT options just wont cut it. Adjust color temps from 2700K to 6000K and everything in between to create elegant lighting catered to times of day or application setting.
- Dynamic white color tuning 2700K up to 6000K with 94+ CRI
- Adjust and blend color temperatures for the perfect dynamic white setting
- Lumen output up to 510Lm per foot while consuming only 7W per foot
- Dimmable color blending via DMX Tunable CCT Controller
- Compatible with most third party DMX controls
- Run lengths up to 13.1 feet and cuttable every 3.94"
Performance
Input Voltage
24V DC
Wattage
7 W/ft
CCT
2700K-6000K
CRI
90+
Lumens
510
Cut Increment
3.94 in
Max Run
13.1 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
PWM 5 - 100%
Spacing
0.33 Inch
Physical
Weight
0.60 lbs
Width
0.03 Foot
Length
13.1 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| SPTL-TW | 13.1 Foot | 24V DC | 2700K-6000K | 90+ | 7 W/ft | 510 | 13.1 ft | IP54 | Each |
