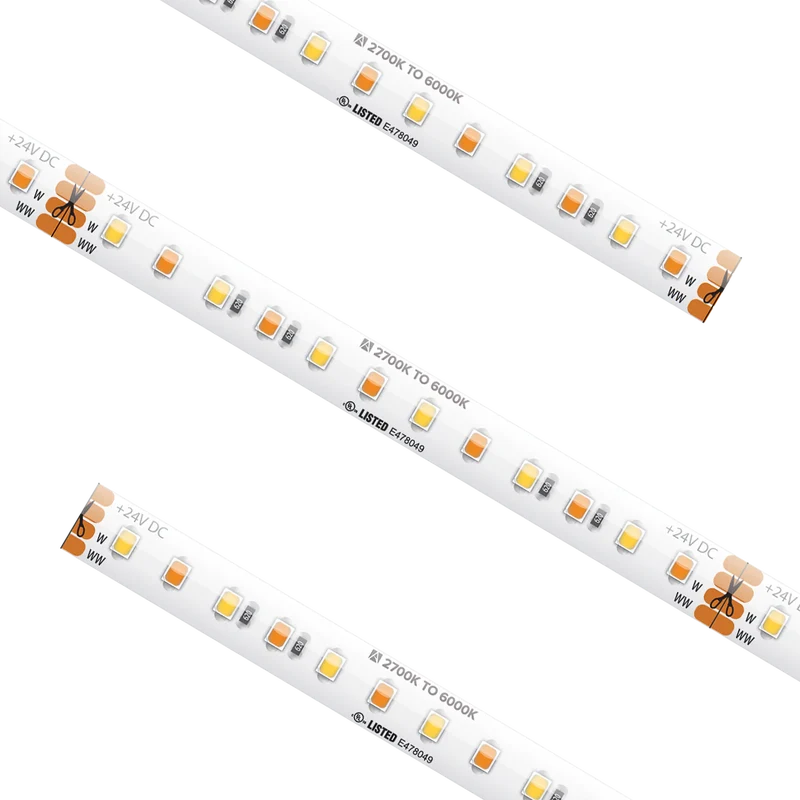

Specification Grade Tape Light IP54 TW Custom Cut
SKU
SPTL-TW-CC
CC SPEC TUN WH TAPE IP54,24V,7.0W/FT,2700-6000K, 98.4' REEL,20-22LM/LED,140LM/FT
Performance
Input Voltage
24V DC
Wattage
7 W/ft
CCT
2700K-6000K
CRI
90+
Lumens
510
Cut Increment
3.94 in
Max Run
13.1 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
PWM 5 - 100%
Spacing
0.33 Inch
Physical
Weight
4.62 lbs
Length
Custom Cut
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| SPTL-TW-CC | Custom Cut | 24V DC | 2700K-6000K | 90+ | 7 W/ft | 510 | 13.1 ft | IP54 | Foot |
