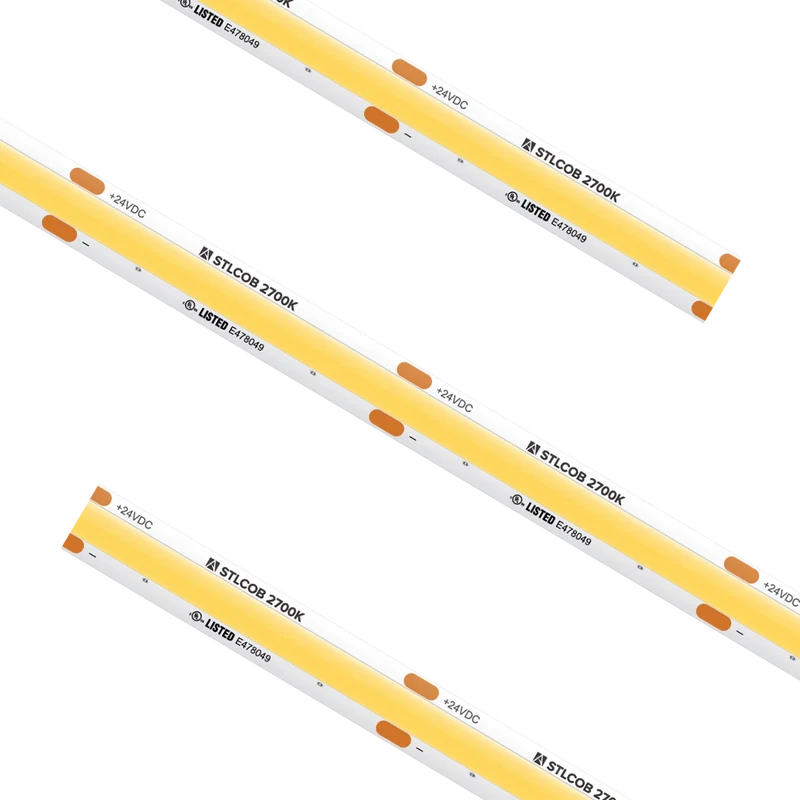

Standard COB Tape Light IP54 2700K Custom Cut

SKU
STL-COB-UWW-CC
Custom Cut STL COB Tape Light, IP54, 1.96" cut increment, 2700K, 2.19W/ft
Standard COB Tape Light IP54 2700K Custom Cut
Standard COB Tape Light IP54 2700K Custom Cut

Performance

Input Voltage
24V DC
Input Frequency
60Hz
Wattage
2.19 W/ft
CCT
2700K
CRI
90+
Lumens
180
Cut Increment
1.97 in
Max Run
23 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%

Physical

Weight
0.02 lbs
Length
Custom Cut

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
STL-COB-UWW-CC Custom Cut 24V DC 2700K 90+ 2.19 W/ft 180 23 ft IP54 Foot

Specification Sheets

Standard Grade COB Tape Light Custom Cut_SpecSheet_AML-STL-COB-CustomCut.pdf

Instruction Manuals

A STEP-BY-STEP GUIDE FOR YOUR NEXT TAPE LIGHT PROJECT IS HERE.

ACE, American Lighting’s product configurator offers a simple step-by-step guide to walk you through your tape light project. Made to be used by beginners and lighting professionals alke ACE assures that you have a complete list of materials for a beautiful linear lighting installation.

LEARN MORE
