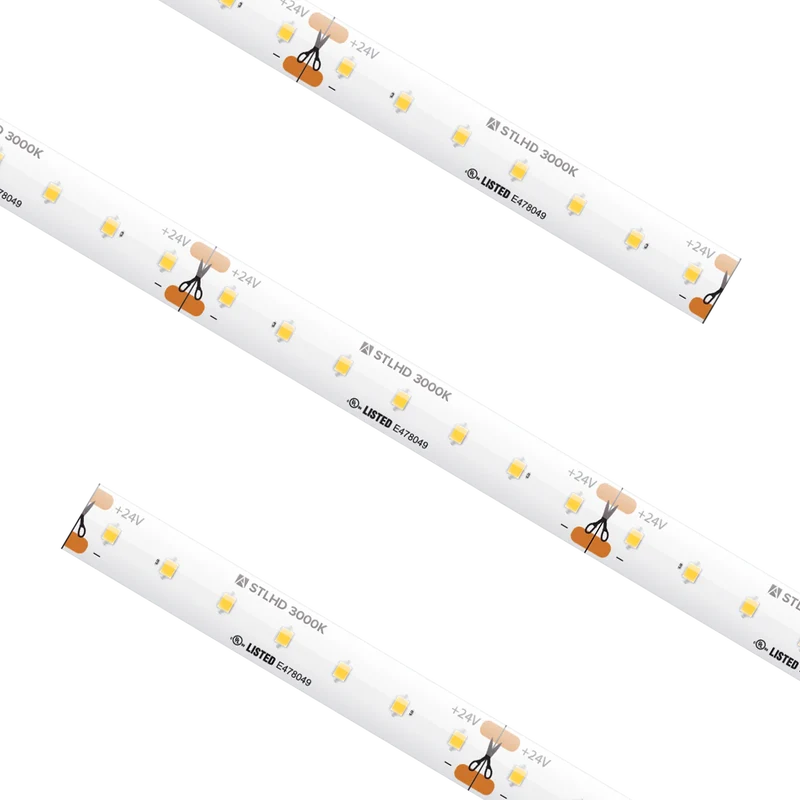

Standard High Density Tape Light IP54 3000K 16.4Ft
SKU
STLHD-WW-16
STL HD GRD TRULUX, 24V, 3000K, 16.4FT RL W/3 TL-CNKTS: Y0409676/TL-2PWR-HD 10MM 2PIN CONNECTOR W/6' CABLE, 2.19W/FT.IP54, 94+CRI, 2.46" CUT, 32.8' MAX
Performance
Input Voltage
24V DC
Input Frequency
60Hz
Wattage
2.19 W/ft
CCT
3000K
CRI
90+
Lumens
210
Cut Increment
2.46 in
Max Run
32.8 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin Linking
Spacing
0.35 Inch
Physical
Weight
0.80 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| STLHD-WW-16 | 16.4 Foot | 24V DC | 3000K | 90+ | 2.19 W/ft | 210 | 32.8 ft | IP54 | Each |
