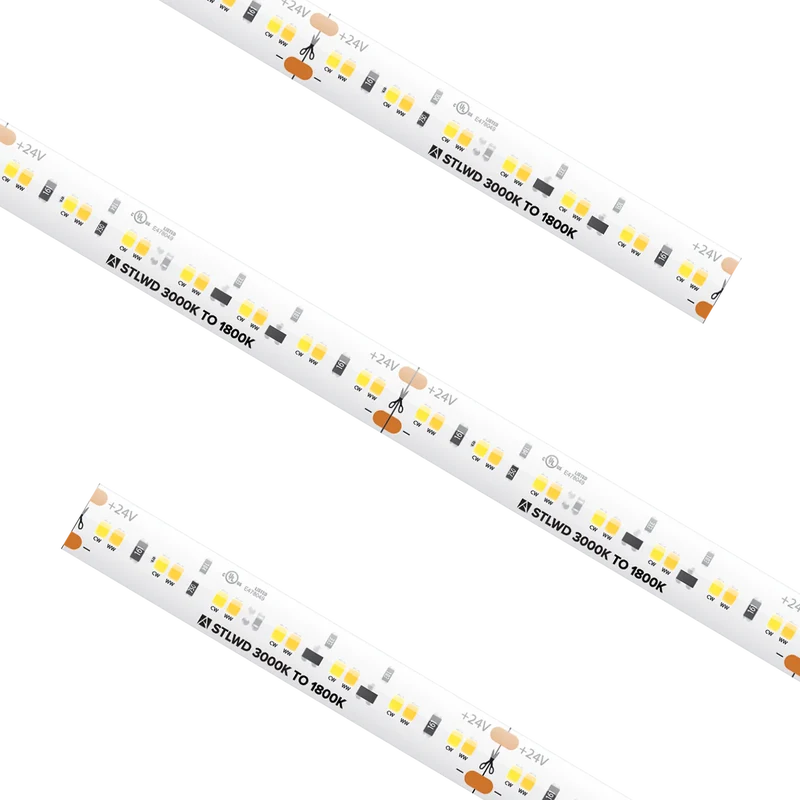

Standard Tape Light IP54 Warm Dim Custom Cut
SKU
STLWD-3018-CC
Custom Cut Standard Grade High Density Warm to Dim Tape Light via TRIAC/ELV/CL 1800K (5%)-3000K (100%) Range, 2.93w/ft, 262lm/ft
Performance
Input Voltage
24V DC
Wattage
3 W/ft
CCT
1800K-3000K
CRI
90+
Lumens
262
Cut Increment
3.94 in
Max Run
20 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Spacing
0.35 Inch
Physical
Weight
0.06 lbs
Length
Custom Cut
Certification
Safety Rating
cULus Listed
Title 24
Y
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| STLWD-3018-CC | Custom Cut | 24V DC | 1800K-3000K | 90+ | 3 W/ft | 262 | 20 ft | IP54 | Foot |
