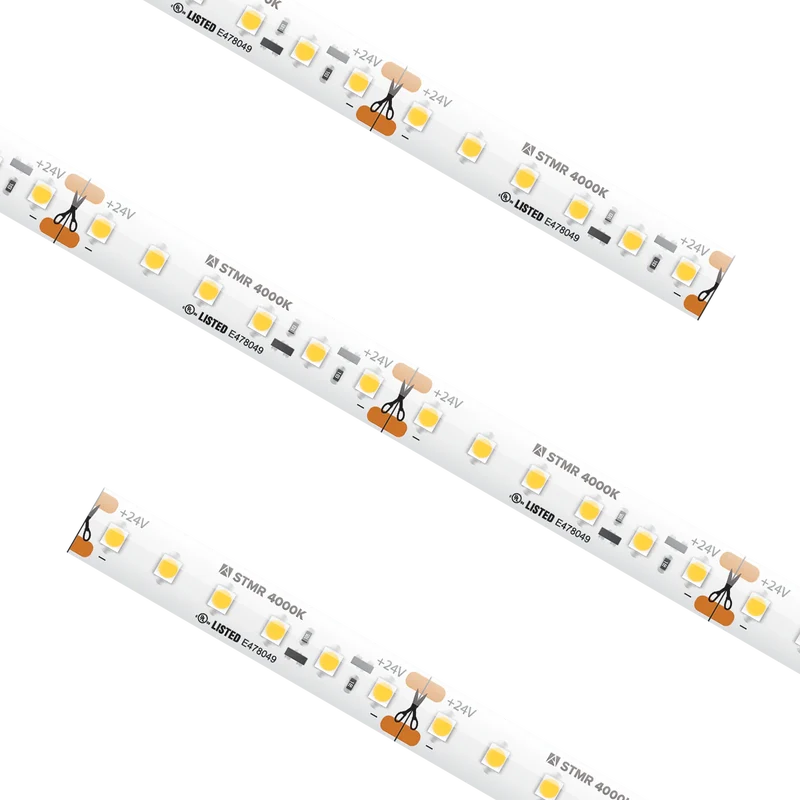

Standard Tape Light IP54 4000K Max Run 65.6Ft
SKU
STMR-40-65
20M Reel LED Tape Light, 20M max run, 4000K, 24V DC, 1.47w/ft, 110lm/ft, W/3 TL-CONKIT: Y0409676/TL-2PWR-HD 10MM 2PIN CONNECTOR W/6' CABLE
Performance
Input Voltage
24V DC
Wattage
1.47 W/ft
CCT
4000K
CRI
90+
Lumens
112
Cut Increment
1.97 in
Max Run
65.6 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin Linking
Spacing
0.33 Inch
Physical
Weight
2.10 lbs
Width
0.03 Foot
Length
65.6 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| STMR-40-65 | 65.6 Foot | 24V DC | 4000K | 90+ | 1.47 W/ft | 112 | 65.6 ft | IP54 | Each |
