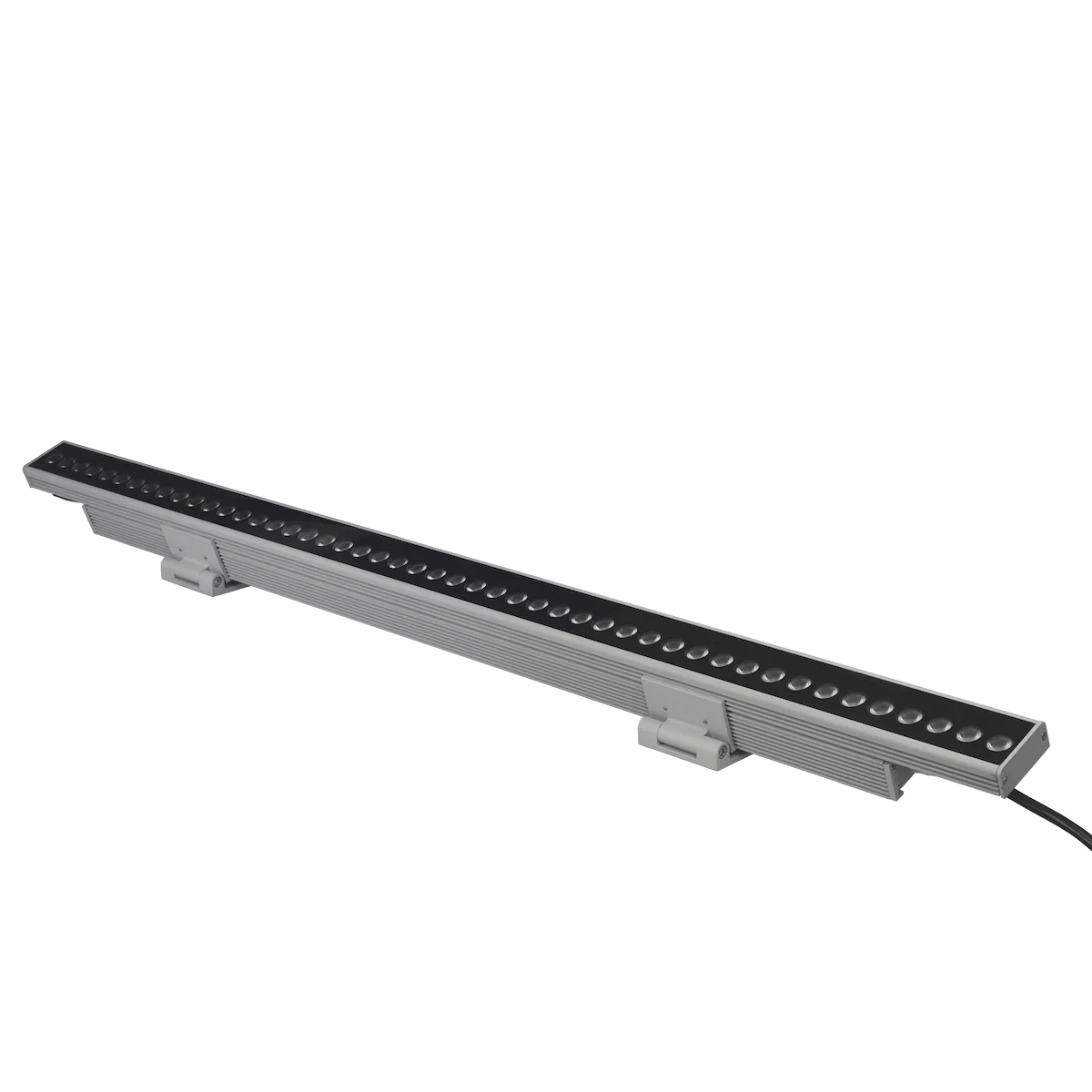

Senik Graze Lit 2700K 1Ft 35 Optic
SKU
WGL1-27K
S?nik Graze L?t Static White 2700K, 12", 35D optic, 100-277V, proprietary mounting bracket (SA finish). Lead wire 12� to end of connector, tail wire 4� to end of connector. Satin Aluminum (RAL9006) housing finish. 0-10V
Performance
Input Voltage
100-277V AC
Input Frequency
50-60Hz
Wattage
12 W
CCT
2700K
CRI
80+
Lumens
1031
Max Run
70/196 units
Optics (Degree)
35 degrees
Rated Life (Hr)
70,000 Hours
Temperature Range
-40C (-40F) to 50C (122F) degrees
Dimming
0-10V 1-100%
Finish
Satin Aluminum
Quantity
12
Physical
Weight
3.33 lbs
Width
1.14 Foot
Length
1 Foot
Height
0.83 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP66
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| WGL1-27K | 1 Foot | 100-277V AC | 2700K | 80+ | 12 W | 1031 | 70/196 units | IP66 | Each |
