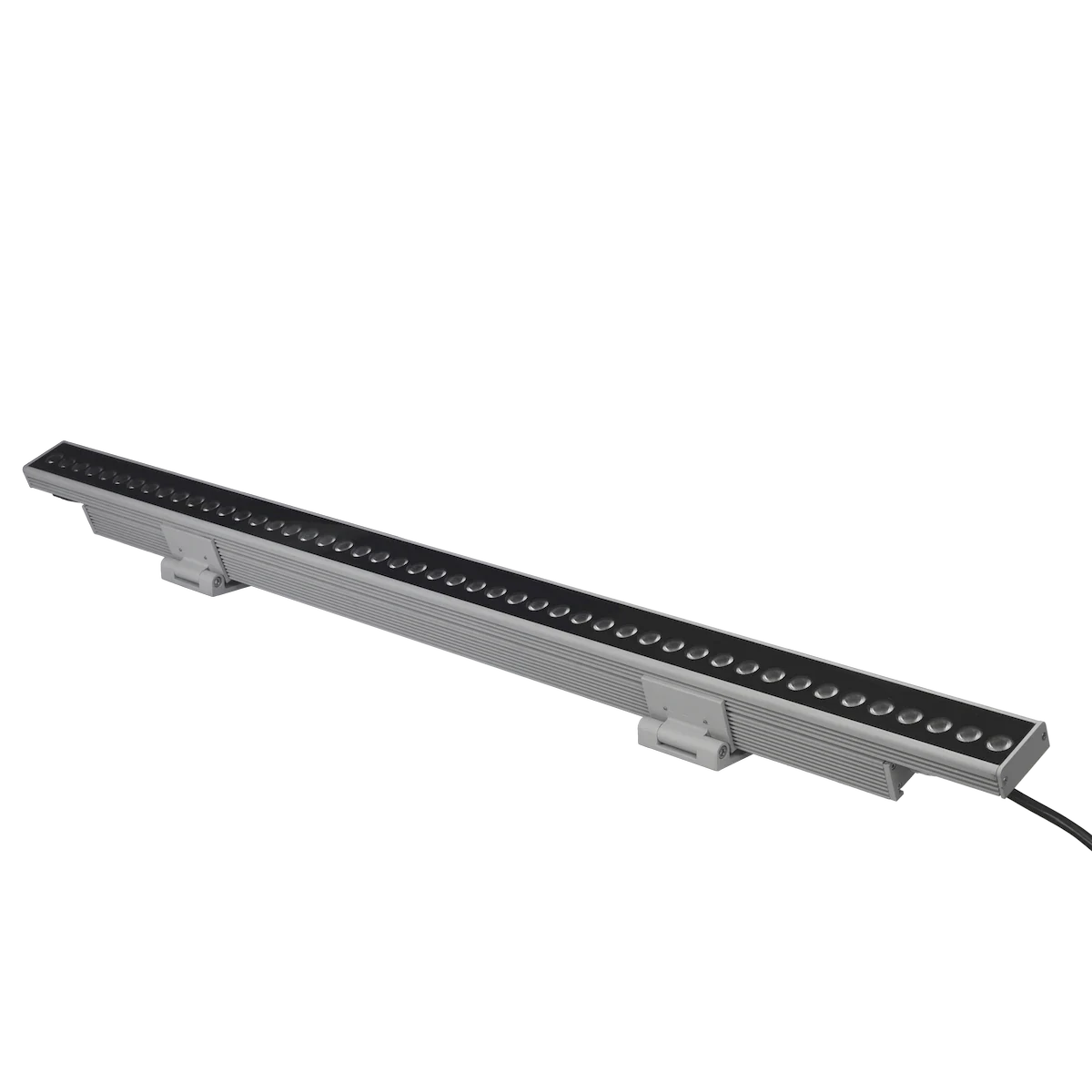

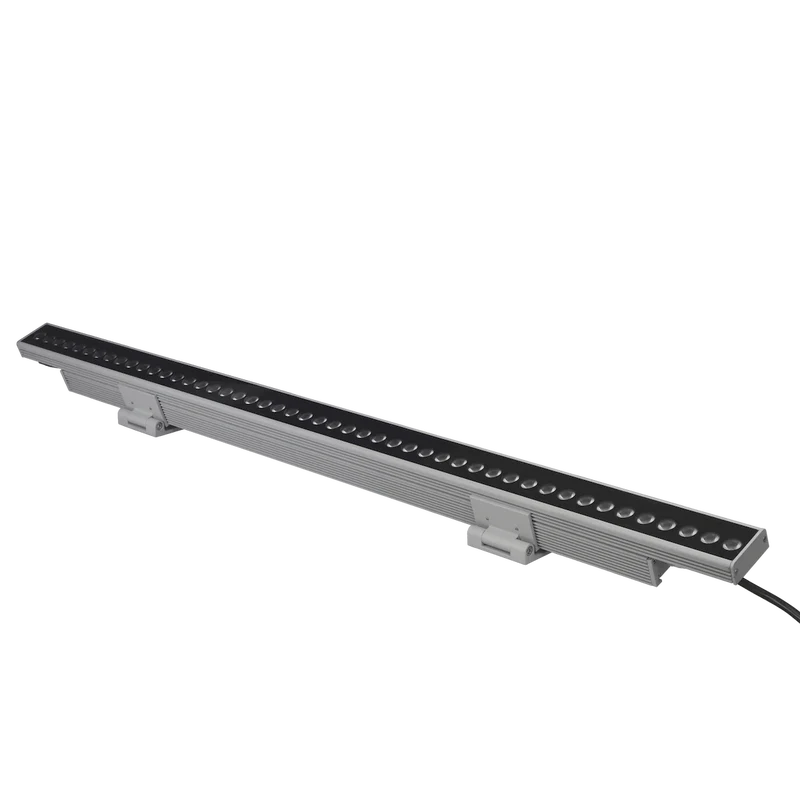

Senik Graze Lit 2700K 1Ft 15x40 Optic
SKU
WGL1-27K-15X40
S?nik Graze L?t Static White 2700K, 12", 10x40 optic, 100-277V, proprietary mounting bracket (SA finish). Lead wire 12� to end of connector, tail wire 4� to end of connector. Satin Aluminum (RAL9006) housing finish. 0-10V
Performance
Input Voltage
100-277V AC
Wattage
12 W
CCT
2700K
CRI
80+
Lumens
1072
Max Run
70/196 units
Optics (Degree)
15x40 degrees
Rated Life (Hr)
70,000 Hours
Temperature Range
-40C (-40F) to 50C (122F) degrees
Dimming
0-10V 5-100%
Finish
Satin Aluminum
Physical
Weight
4.72 lbs
Width
1.14 Foot
Length
1 Foot
Height
0.83 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP66
| Item Number | Length | Finish | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
| WGL1-27K-15X40 | 1 Foot | Satin Aluminum | 100-277V AC | 2700K | 80+ | 12 W | 1072 | 70/196 units | IP66 | Each |
