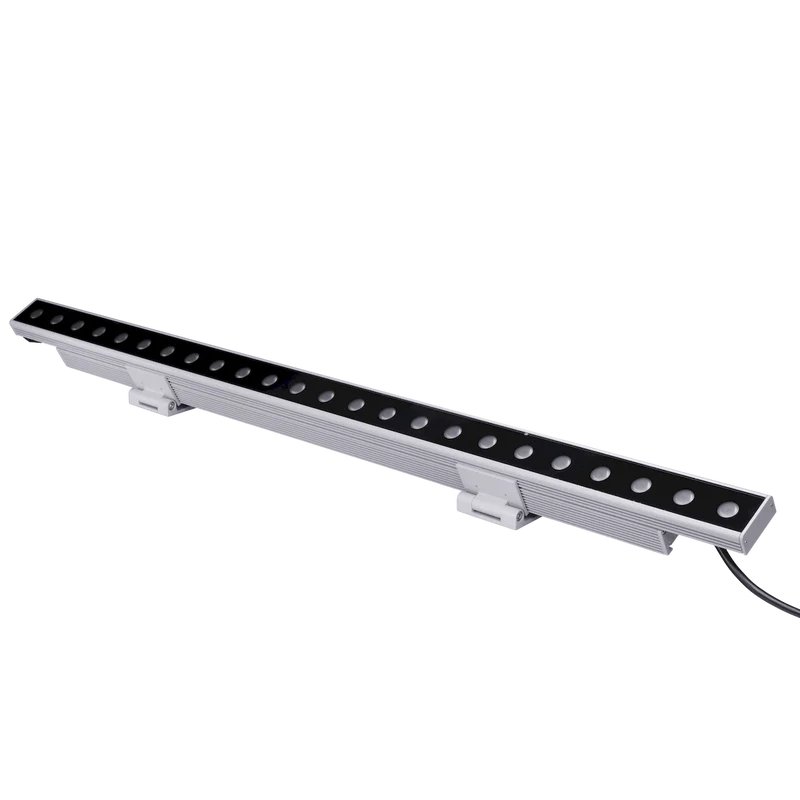

Senik Graze Lit RGBW 1Ft 20x45 Optic
SKU
WGL1-RGBW-20X45
S?nik Graze L?t, RGBW (3000K) 4-in-1, 12�, 20x45D optic, 100-277V, proprietary mounting bracket (SA finish). Lead wire 12� to end of connector, tail wire 4� to end of connector. Satin Aluminum (RAL9006) housing finish. DMX and RDM
Performance
Input Voltage
100-277V AC
Wattage
12 W
CCT
RGBW
CRI
80+
Lumens
467
Max Run
70/196 units
Optics (Degree)
20x45 degrees
Rated Life (Hr)
70,000 Hours
Temperature Range
-40C (-40F) to 50C (122F) degrees
Dimming
DMX-RDM 1-100%
Finish
Satin Aluminum
Quantity
6
Physical
Weight
3.33 lbs
Width
1.14 Foot
Length
1 Foot
Height
0.83 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP66
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| WGL1-RGBW-20X45 | 1 Foot | 100-277V AC | RGBW | 80+ | 12 W | 467 | 70/196 units | IP66 | Each |
