X Series C7 Stringer
SERIES
C-AML-XC7
Our C7 stringers and reels are our most popular linear lighting option for most commercial and residential applications. Custom cut this stringer to the length you need and use snap-on male and female plugs (not included) to supply power to your lighting applications making it ideal for small and large outdoor seasonal displays.
- Compatible with most C7-E12 candelabra base bulbs
- Stringers include factory installed fused plug and socket
- Up to 1200W maximum run lengths

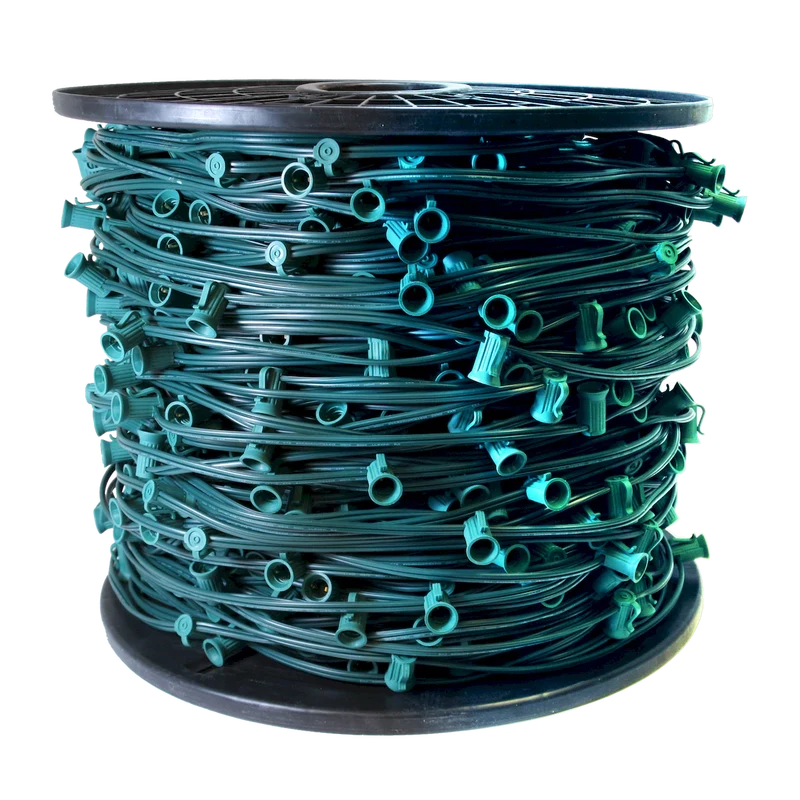

- Available in 25ft, 50ft, and 100ft stringers as well as 1000ft bulk reels
- White, Green, and Brown stringer color options
- C7 - E12 socket type bulbs sold separately
Performance
Finish
Green / Brown / White
Max Run
600W (25/12 & 50/12) / 960W (100/12) / 1200W (M)
Certification
Outdoor
Y
| Item Number | Length | Finish | Input Voltage | CCT | Max Run | UOM |
|---|---|---|---|---|---|---|
| XC710012-GR | 100 Foot | Green | 960 W | Each | ||
| XC710012-WH | 100 Foot | White | 960 W | Each | ||
| XC72512-GR | 25 Foot | Green | 120V | 600 W | Each | |
| XC72512-WH | 25 Foot | White | RGBW | 600 W | Each | |
| XC736-6-GR-SPT1 | 18 Foot | Green | 600 W | Each | ||
| XC736-6-WH-SPT1 | 18 Foot | White | 600 W | Each | ||
| XC736-GR-SPT1 | 36 Foot | Green | 600 W | Each | ||
| XC736-WH-SPT1 | 36 Foot | White | 600 W | Each | ||
| XC75012-GR | 50 Foot | Green | 600 W | Each | ||
| XC75012-WH | 50 Foot | White | 600 W | Each | ||
| XC7-MB12 | 1000 Foot | Brown | 1200 W | Each | ||
| XC7-MG12 | 1000 Foot | Green | 120V | 1200 W | Each | |
| XC7-MG12-SPT1 | 1000 Foot | Green | 1200 W | Each | ||
| XC7-MG15 | 1000 Foot | Green | 120V | 1200 W | Each | |
| XC7-MG15-SPT1 | 1000 Foot | Green | 1200 W | Each | ||
| XC7-MG18 | 1000 Foot | Green | 120V | 1200 W | Each | |
| XC7-MG18-SPT1 | 1000 Foot | Green | 1200 W | Each | ||
| XC7-MG24 | 1000 Foot | Green | 1200 W | Each | ||
| XC7-MG24-SPT1 | 1000 Foot | Green | 1200 W | Each | ||
| XC7-MG36 | 1000 Foot | Green | 1200 W | Each | ||
| XC7-MG36-SPT1 | 1000 Foot | Green | 1200 W | Each | ||
| XC7-MG6 | 1000 Foot | Green | 1200 W | Each | ||
| XC7-MG6-SPT1 | 1000 Foot | Green | 1200 W | Each | ||
| XC7-MW12 | 1000 Foot | White | 1200 W | Each | ||
| XC7-MW12-SPT1 | 1000 Foot | White | 1200 W | Each | ||
| XC7-MW6-SPT1 | 1000 Foot | White | 1200 W | Each |
