Rhyme Downlight 3in Deep Baffle Square, Black Finish
SKU
RHYM-DL3Q-15-36-THNC-5CCT-BK
The Rhyme series captures small aperture, low-profile downlights available in trim or trimless style options and provides ease of installation through an innovative click-action mechanism.
- Click-action mechanism allows for quick and easy installation as well as maintenance suitable for remodel and new construction

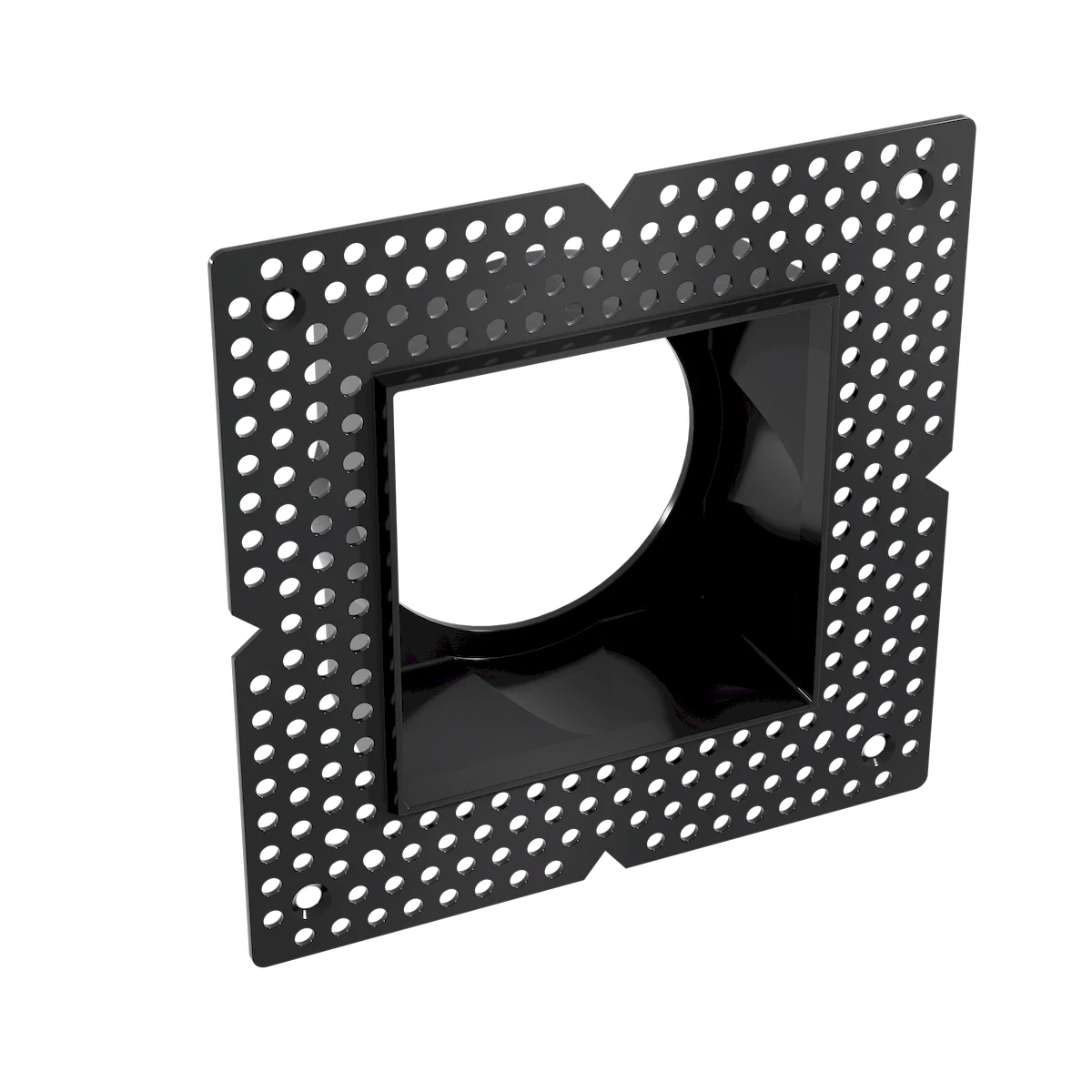

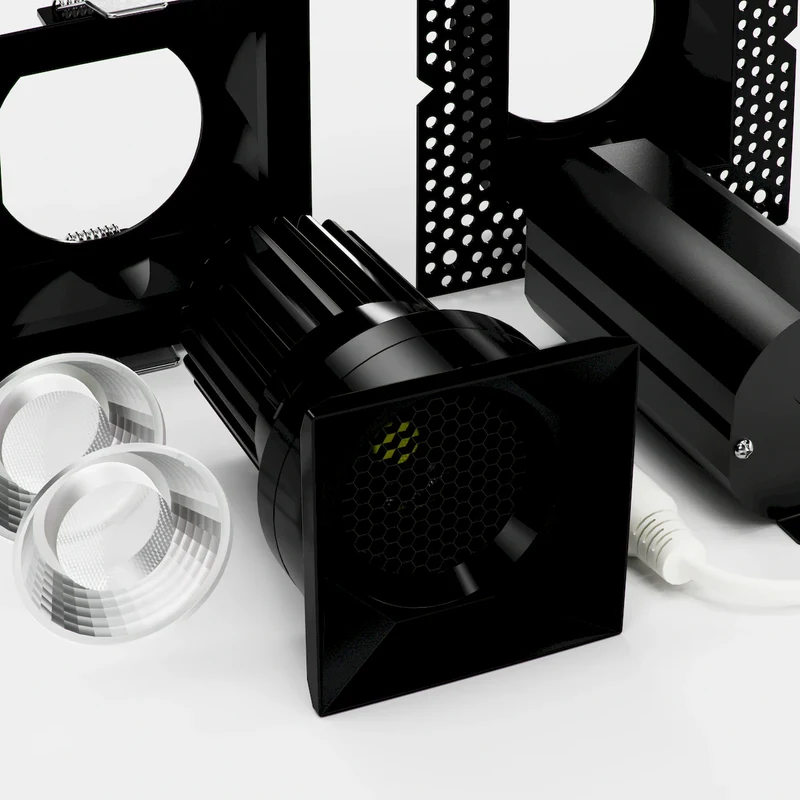

- Each light module includes (1) mud-in trimless accessory and (1) trim accessory
- Aluminum housing with polycarbonate lens
- 5CCT Adjustable color temperature (2700K / 3000K / 3500K / 4000K / 5000K)
- Lumen output up to 1520 Lumens
- Dimmable with most TRIAC/ELV dimmers
- cETLus Listed for wet locations, JA8 Compliant, Type IC, Air-tight
- 50,000 hours rated life
Performance
Input Voltage
120V AC
Output Voltage
36V DC
Input Frequency
50-60Hz
Lens Details
PC
Wattage
15 W
CCT
5CCT
CRI
90
Mounting
50
Power Factor
>0.90
Lumens
1150
Optics (Degree)
60 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-4 to 104 degrees
Dimming
TRIAC 10% - 100%
Finish
Black
Style
TIR Lens Deep Baffle Square
Physical
Weight
1.81 lbs
Length
3 Inch
Certification
Safety Rating
ETL Listed
Type IC
Y
Airtight
Y
IP Rating
IP44
Location Rating
Wet
Indoor
Y
ROHS
Y
| Item Number | Length | Finish | Input Voltage | CCT | CRI | Wattage | Lumens | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| RHYM-DL3Q-15-36-THNC-5CCT-BK | 3 Inch | Black | 120V AC | 5CCT | 90 | 15 W | 1150 | IP44 | Each |
