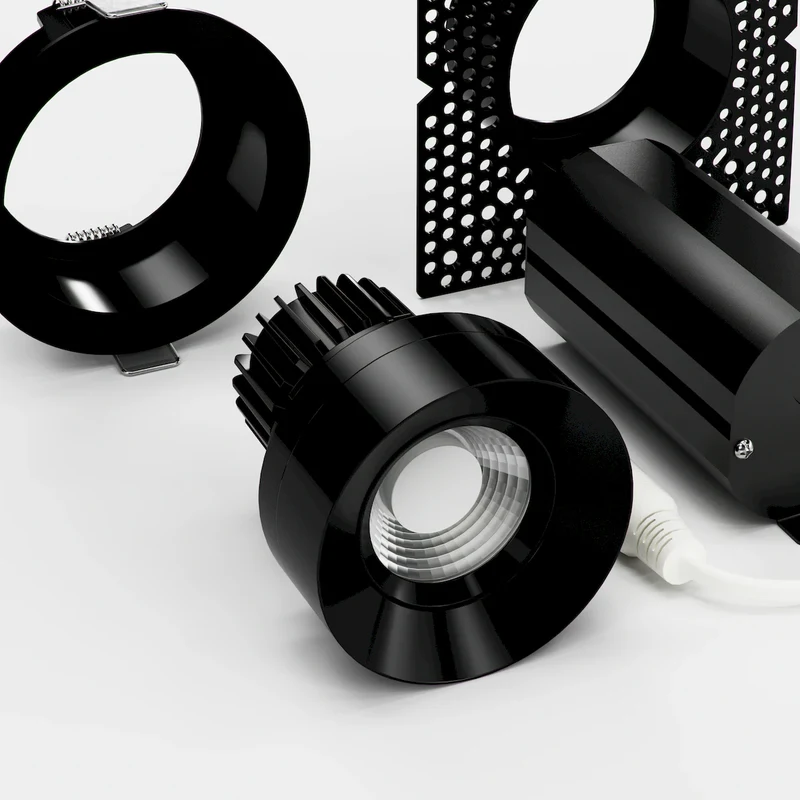

Rhyme Downlight 3in Gimbal Round, Black Finish
SKU
RHYM-DL3R-12-36-GIM-5CCT-BK
The Rhyme series captures small aperture, low-profile downlights available in trim or trimless style options and provides ease of installation through an innovative click-action mechanism.
- Click-action mechanism allows for quick and easy installation as well as maintenance
- Each light module includes (1) mud-in trimless accessory and (1) trim accessory
- Aluminum housing with polycarbonate lens
- 5CCT Adjustable color temperature (2700K / 3000K / 3500K / 4000K / 5000K)
- Lumen output up to 1190 Lumens
- Dimmable with most TRIAC/ELV dimmers
- Type IC and ETLus Listed for Damp locations
- 50,000 hours rated life
Performance
Input Voltage
120V AC
Output Voltage
36V DC
Input Frequency
50-60Hz
Lens Details
PC
Wattage
12 W
CCT
5CCT
CRI
90
R9(%)
50
Power Factor
>0.90
Lumens
950
Optics (Degree)
60 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-4 to 104 degrees
Dimming
TRIAC 10% - 100%
Finish
Black
Style
Round Eyeball Gimbal
Physical
Weight
3.33 lbs
Certification
Safety Rating
ETL Listed
Type IC
Y
IP Rating
IP44
Location Rating
Wet
Indoor
Y
ROHS
Y
Item Number | Input Voltage | CCT | CRI | Wattage | Lumens | IP Rating | UOM |
---|---|---|---|---|---|---|---|
RHYM-DL3R-12-36-GIM-5CCT-BK | 120V AC | 5CCT | 90 | 12 W | 950 | IP44 | Each |
