4-Zone DMX Wall Control

SERIES
DMX-TW-4Z

For color temperature control at the touch of a dial, the tunable CCT DMX controller is a great option for mid-size multi layer installs. Featuring four programmable zones and two scene selections, build a layered lighting system and control each layer all together or indecently. With built in touch-toggle dimming and color adjustment, seamlessly blend 2700K to 6000K and tune to any color temp in between.

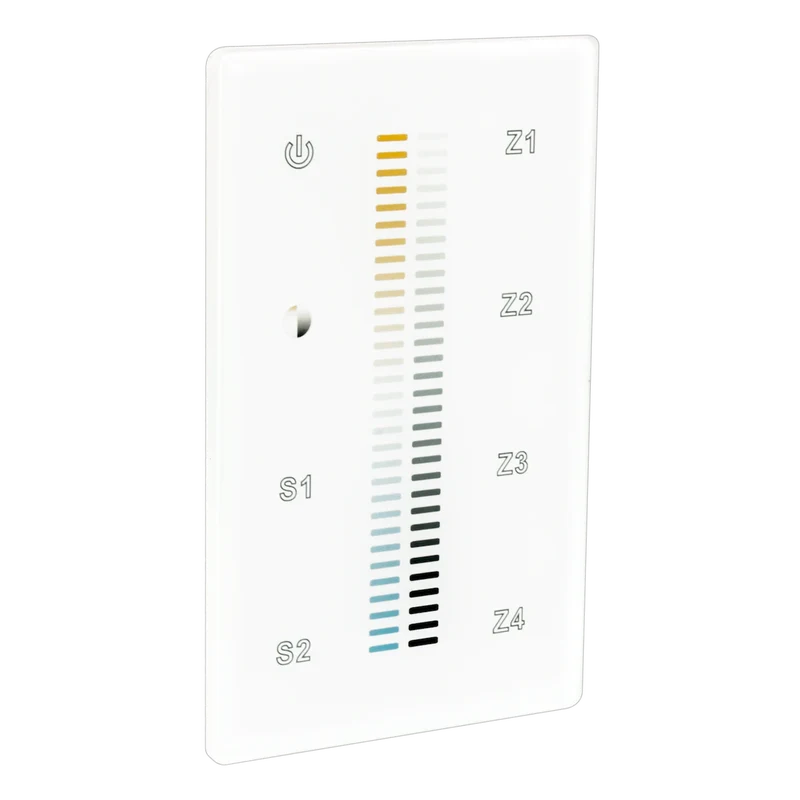

  • Touch-sensitive configuration & operation wall plate controller
  • Features side by side dimming and color adjustment slider with toggle selection
  • Tune color temperature ranging from 2700K to 6000K
  • Includes four zones and two scene selection settings
  • Features full range dimming capabilities (1-100%)
  • Requires 12-24V DC input and DMX decoder
4-Zone DMX Wall Control
4-Zone DMX Wall Control 4-Zone DMX Wall Control

Performance

Input Voltage
12-24V DC
Output Frequency
DMX
Temperature Range
0C to 40C degrees
Finish
White
Control
DMX

Physical

Weight
0.5 lbs
Width
1.15 Inch
Length
2.96 Inch
Height
4.75 Inch

Certification

Location Rating
Dry
Indoor
Y
ROHS
Y
FCC
Y
Item Number Length Input Voltage UOM
DMX-TW-4Z 2.96 Inch 12-24V DC Each
